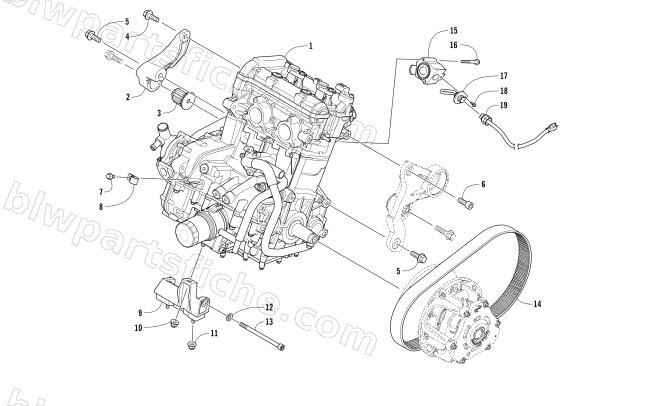

2017 Arctic Cat ZR 5000 LXR 137 — ENGINE AND RELATED PARTS
2017 ZR 5000 LXR 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0762-583 | LONG BLOCK,ENGINE-1100NA | 1 | $5,290.95 | |
| 3 | 0608-654 | MOUNT,ENGINE 60 DURO | 1 | $27.95 | |
| 4 | 8413-036 | SCREW,CAP-HFH M10X1.25X35 CL10.9 W/2353 | 1 | $7.72 | |
| 5 | 8413-241 | SCREW,CAP-HFH M12X1.25X40 CL10.9W/2353 | 1 | $8.54 | |
| 6 | 1623-985 | SCREW,CAP-HSH-M10X1.25X35-CL12.9-W/2510 | 1 | $2.75 | |
| 7 | 8408-816 | SCREW,CAP-HFH M8X1.25X16 CL8.8 Z&Y | 1 | $0.68 | |
| 8 | 1623-080 | CLAMP, FLEX SHAFT (550/600) | 1 | $1.50 | |
| 9 | 0608-619 | MOUNT,ENGINE-FRT-ASSY | 1 | $38.95 | |
| 10 | 8427-002 | NUT,HEX FLG-NYL LOCK M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 11 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 12 | 8450-157 | WASHER,FLAT M10X20X2.30 Z&Y | 1 | $3.16 | |
| 13 | 1623-925 | SCREW,CAP-HSH M10X1.25- Z&Y MPT | 1 | $27.95 | |
| 14 | 0627-081 | BELT,DRIVE DCVS S3C-S 36.8W X 1178OC | 1 | $149.95 | |
| 15 | 0609-928 | ADAPTER,HEATER ELEMENT | 1 | $211.95 | |
| 16 | 8408-650 | SCREW,CAP-HFH M6X1.0X50 CL8.8 Z&Y | 1 | $1.78 | |
| 17 | 0609-927 | ELEMENT,HEATING-110V-US | 1 | $175.95 | |
| 18 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 19 | 0709-082 | CORD,ENGINE HEATER W/DECAL-US | 1 | $45.95 |
