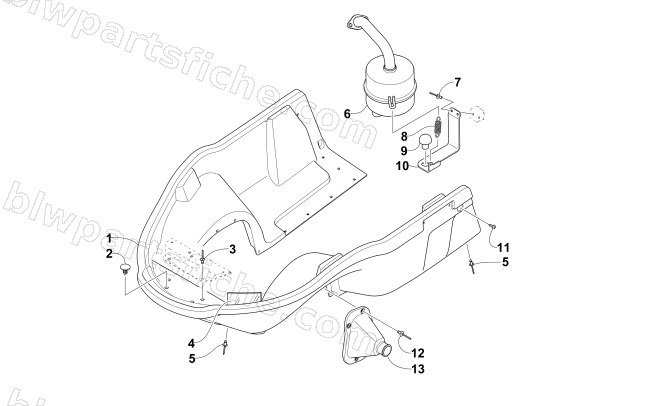

2017 Arctic Cat ZR 120 — BELLY PAN AND EXHAUST ASSEMBLIES
2017 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-006 | BELLY PAN, BLK-120 | 1 | $251.95 | |
| 2 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 3 | 0623-778 | RIVET, BULBEX-BF01-0625 | 1 | $1.09 | |
| 4 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 5 | 8061-508 | RIVET,BLIND-LF SS56 BLACK | 1 | $1.37 | |
| 6 | 1712-779 | MUFFLER(120)-PTD BLK | 1 | $171.95 | |
| 7 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 8 | 0123-321 | SPRING,EXTENSION | 1 | $5.51 | |
| 9 | 0612-111 | BUMPER,MOLDED-RUBBER | 1 | $16.49 | |
| 10 | 0712-914 | BRACKET,MUFFLER SUPPORT-PTD BLK | 1 | $15.11 | |
| 12 | 8060-508 | RIVET,BLIND-DH SS56 BLK | 1 | $0.26 | |
| 13 | 0605-464 | BOOT,TIE ROD-RH | 1 | $42.95 | |
| 13 | 0605-465 | BOOT,TIE ROD-LH | 1 | $42.95 |
