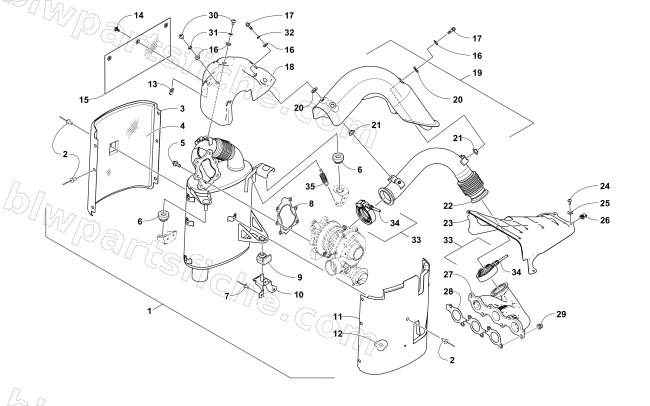

2017 Arctic Cat XF 9000 HIGH COUNTRY LTD 153 1.7 — EXHAUST ASSEMBLY
2017 XF 9000 HIGH COUNTRY LTD 153 1.7
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2712-008 | RESONATOR,EXHAUST-FABR | 1 | $808.95 | |
| 2 | 8061-682 | RIVET,BLIND-LF SD62BSLF ZINC | 1 | $0.95 | |
| 6 | 2612-186 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $12.35 | |
| 7 | 8060-710 | RIVET,BLIND-DH SS68 BLK | 1 | $0.26 | |
| 8 | 3612-194 | GASKET,TURBO-EXHAUST FLANGE | 1 | $22.01 | |
| 9 | 2612-912 | GROMMET,RESONATOR MOUNT | 1 | $5.65 | |
| 10 | 1712-790 | BRKT,MOUNTING-LOWER-RESONATOR-PTD BLK | 1 | $19.25 | |
| 13 | 1623-052 | NUT,U | 1 | $0.95 | |
| 15 | 2712-061 | SHIELD,HEAT BARRIER | 1 | $89.95 | |
| 16 | 8050-223 | WASHER,FLAT (STD) 1/4 DIA BLK | 1 | $0.26 | |
| 19 | 2712-082 | SHIELD,HEAT-W/ISOLATOR | 1 | $170.95 | |
| 24 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 25 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 26 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 30 | 8476-612 | SCREW,MACH-TSTRH M6X1.0X12 Z&Y | 1 | $0.95 | |
| 31 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 32 | 1623-409 | RETAINER,PUSHNUT-1/4 | 1 | $1.09 | |
| 34 | 3612-272 | KIT,SERVICE-V-BAND EXHAUST CLAMP | 1 | $29.95 | |
| 35 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 |
