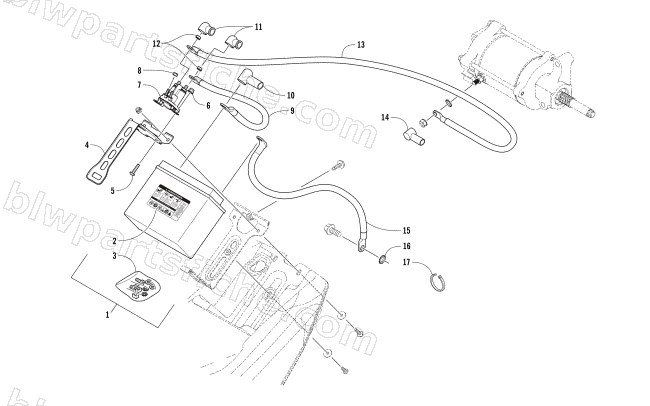

2017 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 153 — BATTERY ASSEMBLY
2017 XF 8000 HIGH COUNTRY LTD ES 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0645-674 | BRKT,HOLDDOWN BATTERY | 1 | $27.95 | |
| 5 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 0645-673 | SOLENOID,STARTER RELAY(MY12 800) | 1 | $46.95 | |
| 8 | 0624-524 | NUT,HEX,8-32 W/STAR WASHER SS | 1 | $0.40 | |
| 9 | 0645-649 | CABLE,BATTERY-SOLENOID | 1 | $19.25 | |
| 10 | 0645-662 | BOOT,BATTERY CABLE | 1 | $8.95 | |
| 11 | 0645-697 | BOOT,BATTERY CABLE | 1 | $19.25 | |
| 12 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 13 | 0645-650 | CABLE,SOLENOID TO STARTER-2 STRK | 1 | $49.95 | |
| 14 | 0645-581 | R/B 0645-019 | 1 | $19.95 | |
| 15 | 0645-648 | CABLE,BATTERY-GROUND-2 STRK | 1 | $38.95 | |
| 16 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 17 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
