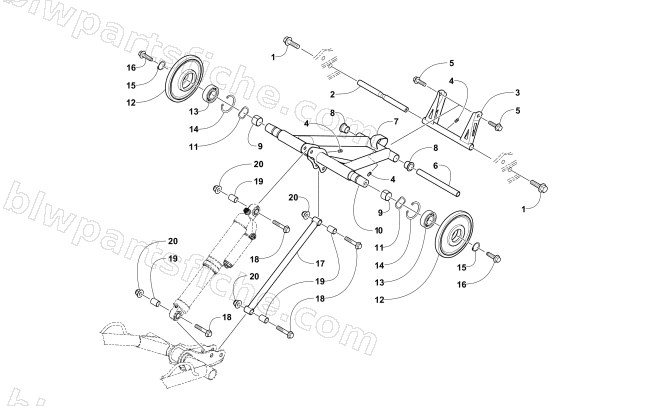

2017 Arctic Cat XF 8000 HIGH COUNTRY LTD ES 141 — REAR SUSPENSION REAR ARM ASSEMBLY
2017 XF 8000 HIGH COUNTRY LTD ES 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-826 | SCREW,CAP-HFH M8X1.25X25 CL8.8 W/2353 | 1 | $0.40 | |
| 2 | 3604-857 | AXLE,XBRC-HC-16.51X222.25 (M8X1.25) | 1 | $38.95 | |
| 4 | 1623-010 | FIT,GREASE-1/4-28 UNF-SELF THREAD | 1 | $1.92 | |
| 5 | 8413-831 | SCREW,CAP-HFH M8X1.25X30 CL10.9 W/2353 | 1 | $3.16 | |
| 6 | 3604-855 | AXLE,ALUM-19.05 X 173.15-MACH | 1 | $29.95 | |
| 8 | 3604-028 | BUSHING, FLARED -BRONZE .735" x .751 ID | 1 | $3.57 | |
| 9 | 2604-852 | BEARING, 16DU12 | 1 | $10.97 | |
| 10 | 3604-854 | AXLE,INNER CARRIAGE | 1 | $75.95 | |
| 11 | 1623-692 | WASHER,WAVE-1.028X1.268X.028 | 1 | $2.47 | |
| 12 | 2604-699 | WHEEL, IDLER-6.38 (NO INSR) | 1 | $53.95 | |
| 13 | 0107-598 | BEARING,BALL-25MM | 1 | $12.35 | |
| 14 | 0123-798 | RING,INTERNAL-RETAINING | 1 | $1.64 | |
| 15 | 1623-690 | SNAP RING,EXTL-.925 ID | 1 | $1.09 | |
| 16 | 2623-002 | SCREW,CAP-HFH-M10X1.25X30-MPT-W/2353 | 1 | $3.71 | |
| 18 | 8413-845 | SCREW,CAP-HFH M8X1.25X45 CL10.9 SILV | 1 | $0.26 | |
| 19 | 3604-846 | SLEEVE,SHOCK EYELET-8mm ID | 1 | $2.47 | |
| 20 | 8437-804 | NUT,HEX FLG-NYL LOCK M8X1.25 CL10 SILV | 1 | $0.81 |
