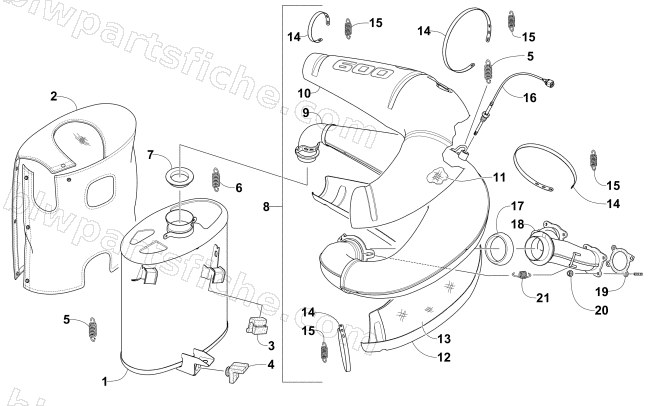

2017 Arctic Cat XF 6000 HIGH COUNTRY LTD ES 141 EARLY BUILD — EXHAUST ASSEMBLY
2017 XF 6000 HIGH COUNTRY LTD ES 141 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-970 | R/B 2712-040 | 1 | $870.95 | |
| 2 | 2612-573 | WRAP,RESONATOR | 1 | $280.95 | |
| 3 | 2612-893 | GROMMET,RUBBER-UPR | 1 | $17.87 | |
| 4 | 2612-706 | GROMMET,RUBBER-LOWER | 1 | $5.65 | |
| 5 | 2612-949 | SPRING,EXHAUST-2.70" | 1 | $5.51 | |
| 6 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 7 | 1612-323 | GASKET, EXH,TAIL PIPE | 1 | $29.95 | |
| 8 | 1712-816 | CHAMBER,EXPANSION-600-FABR | 1 | $990.95 | |
| 9 | 1712-817 | CHAMBER,EXPANSION-600 PTD BLK | 1 | $615.95 | |
| 10 | 2612-870 | COVER,EXP CHAMBER-UPR | 1 | $110.95 | |
| 11 | 2612-872 | PACKING,EXP CHAMBER-UPR | 1 | $32.95 | |
| 12 | 2612-871 | COVER,EXP CHAMBER-LWR | 1 | $109.95 | |
| 13 | 2612-873 | PACKING,EXP CHAMBER-LWR | 1 | $32.95 | |
| 14 | 0624-552 | TIE, PERFORATED BAND-5FT | 1 | $20.63 | |
| 14 | 0624-541 | TIE,PERFORATED BAND-IT( 25' ) | 1 | $110.95 | |
| 15 | 1612-178 | SPRING, EXHAUST STRAP | 1 | $3.85 | |
| 16 | 0630-330 | SENSOR,EXHAUST TEMP-M14 X 1.5 | 1 | $213.95 | |
| 17 | 2612-615 | GASKET,EXHAUST-HEADPIPE | 1 | $32.95 | |
| 18 | 1712-811 | MANIFOLD,EXHAUST-MACH | 1 | $224.95 | |
| 19 | 0930-023 | GASKET,EXHAUST | 1 | $8.21 | |
| 20 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 21 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 |
