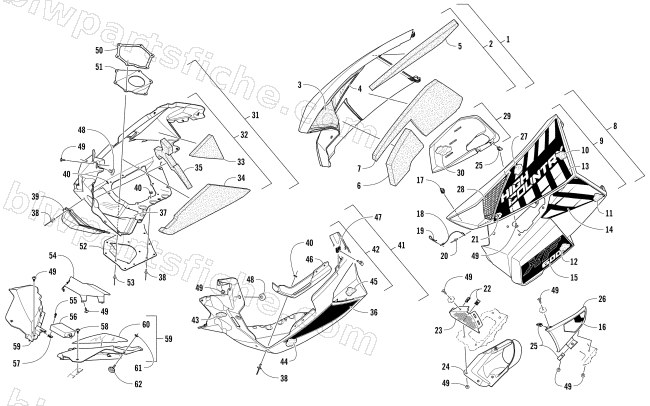

2017 Arctic Cat XF 6000 HIGH COUNTRY 141 — SKID PLATE AND SIDE PANEL ASSEMBLY
2017 XF 6000 HIGH COUNTRY 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-180 | PANEL,SIDE-RH WITH FOAM-BLK (2 STROKE) | 1 | $267.95 | |
| 9 | 4718-553 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 10 | 0617-629 | FOAM,UPPER SIDE PANEL-REAR-LH | 1 | $16.49 | |
| 11 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 12 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 17 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 18 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 19 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 20 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 21 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 22 | 1623-052 | NUT,U | 1 | $0.95 | |
| 23 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 24 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 25 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 26 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 27 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 28 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 29 | 1702-369 | DUCT,AIR-CLUTCH W/FOIL | 1 | $39.95 | |
| 30 | 6606-694 | FOIL,CLUTCH DUCT-2 STROKE | 1 | $3.71 | |
| 33 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 34 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 35 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 37 | 2612-970 | R/B 3612-327 | 1 | $16.95 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 39 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 40 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 42 | 4718-543 | PLATE,SKID-ORN-LH W/FOAM | 1 | $126.95 | |
| 47 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 48 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 49 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 50 | 2612-972 | PLATE,EXHAUST OUTLET | 1 | $15.11 | |
| 51 | 2612-971 | SEAL,EXHAUST OUTLET-CWI | 1 | $38.95 | |
| 52 | 1712-963 | DEFLECTOR,EXHAUST OUTLET-PTD BLK | 1 | $32.95 | |
| 53 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 54 | 6606-940 | SHIELD,HEAT-ECU | 1 | $26.95 | |
| 55 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 57 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 58 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 59 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 59 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 60 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 | |
| 61 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 62 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
