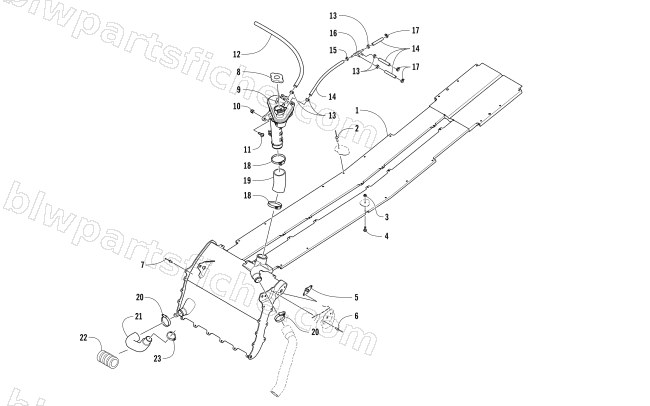

2017 Arctic Cat XF 6000 CROSS COUNTRY LTD ES 137 EARLY BUILD — COOLING ASSEMBLY
2017 XF 6000 CROSS COUNTRY LTD ES 137 EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0713-115 | EXCH,HEAT-2 STRK 141"-WELD'T | 1 | $648.95 | |
| 2 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 3 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 4 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 5 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 6 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 7 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 8 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 9 | 0613-135 | TANK,COOLANT | 1 | $29.95 | |
| 10 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 11 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 12 | 0610-692 | HOSE,OIL/WATER-25 FT | 1 | $117.95 | |
| 12 | 0610-693 | HOSE,OIL-100 FT | 1 | $432.95 | |
| 13 | 1623-655 | CLAMP,HOSE-CRIMP-11.3 | 1 | $3.30 | |
| 14 | 0610-538 | HOSE,VENT- 25' (1054-152) | 1 | $117.95 | |
| 15 | 1623-619 | CLAMP,HOSE-CRIMP-10.5 | 1 | $4.54 | |
| 16 | 0610-717 | FITTING,COOLANT HOSE-DOUBLE T | 1 | $3.02 | |
| 17 | 0623-063 | CLAMP, HOSE (SNP02) | 1 | $4.40 | |
| 18 | 0423-317 | CLAMP, HOSE -32/50 (NORMA 962) | 1 | $2.75 | |
| 19 | 0610-936 | HOSE,COOLANT-EXCH/TANK | 1 | $26.95 | |
| 20 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 21 | 0610-864 | HOSE,COOLANT-ENGINE TO EXCH | 1 | $17.87 | |
| 22 | 0619-619 | HOSE,PROT-CORRUGETED-4" 1.06 ID BLK NY | 1 | $3.44 | |
| 23 | 1623-656 | CLAMP,H0SE-CRIMP-36.1 | 1 | $3.99 |
