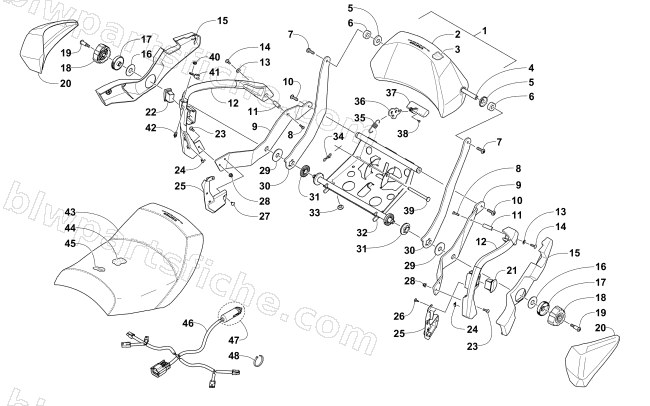

2017 Arctic Cat PANTERA 7000 XT LTD — PASSENGER SEAT AND BACKREST ASSEMBLY
2017 PANTERA 7000 XT LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 5706-950 | BACKREST-ASSY | 1 | $279.95 | |
| 2 | 5706-949 | COVER,BACKREST-PANTERA | 1 | $149.95 | |
| 3 | 0717-210 | FOAM,BACKREST(.44R@1.4) | 1 | $133.95 | |
| 4 | 6606-593 | AXLE,BACKREST | 1 | $24.77 | |
| 5 | 0723-003 | WASHER,CUP-PTD BLK | 1 | $9.59 | |
| 6 | 0616-547 | BLOCK,TENSION-BACKREST | 1 | $5.65 | |
| 7 | 8477-831 | SCREW,MACH-TSTRH M8X1.25X30 Z&BLK W/2353 | 1 | $12.35 | |
| 8 | 2623-073 | SCREW,MACH-TSFH M6X1.0X25 Z&B-W/2353 | 1 | $22.01 | |
| 9 | 5706-576 | BRKT,MOUNTING-HANDHOLD-RH-PTD BLK | 1 | $96.95 | |
| 9 | 5706-577 | BRKT,MOUNTING-HANDHOLD-LH-PTD BLK | 1 | $96.95 | |
| 10 | 8468-621 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 W/2353 | 1 | $1.09 | |
| 11 | 6606-678 | AXLE,HANDHOLD | 1 | $42.95 | |
| 12 | 6606-828 | HANDHOLD,RH-W/HANDWARMER | 1 | $132.95 | |
| 12 | 5606-085 | HAND HOLD, LH- W/HANDWARMER | 1 | $141.95 | |
| 14 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 15 | 6606-690 | COVER,BRKT-HANDHOLD-RH-MOLD BLK | 1 | $34.95 | |
| 15 | 6606-691 | COVER,BRKT-HANDHOLD-LH-MOLD BLK | 1 | $34.95 | |
| 16 | 1623-986 | SPACER-19X49X1.89 | 1 | $5.37 | |
| 17 | 6606-643 | TENSIONER,BACKREST | 1 | $2.61 | |
| 18 | 6606-644 | KNOB,TENSIONER | 1 | $5.37 | |
| 19 | 2623-072 | SCREW,SHOULDER-HSTRH-M8X1.25X44.1 W/2353 | 1 | $4.68 | |
| 20 | 6606-494 | DEFLECTOR,WIND-RH | 1 | $65.95 | |
| 20 | 6606-495 | DEFLECTOR,WIND-LH | 1 | $65.95 | |
| 21 | 0609-836 | SWITCH, HEATED SEAT | 1 | $73.95 | |
| 22 | 0609-835 | SWITCH, PASS-HAND WARMER | 1 | $69.95 | |
| 23 | 8468-620 | SCREW,MACH-TSPNH M6X1.0X20 CL8.8 BLK | 1 | $0.68 | |
| 24 | 1623-703 | CLIP, SPEED-WIRE RETAINER | 1 | $2.33 | |
| 25 | 6606-866 | COVER,HARNESS-RH-MOLD BLK | 1 | $8.21 | |
| 25 | 6606-867 | COVER,HARNESS-LH-MOLD BLK | 1 | $8.21 | |
| 27 | 1623-661 | SCREW,PT THD-TSTRH K60-2.69X16MM RIE BLK | 1 | $2.33 | |
| 28 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 29 | 1623-758 | WASHER,RUBBER-17.9ID X 53.1OD X 3 THK | 1 | $2.47 | |
| 30 | 5706-578 | BRKT,BACKREST-RH-PTD BLK | 1 | $78.95 | |
| 30 | 5706-579 | BRKT,BACKREST-LH-PTD BLK | 1 | $78.95 | |
| 31 | 6606-642 | PLATE,LOCKING-SERRATED-OUTER | 1 | $8.21 | |
| 33 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 34 | 1623-546 | PIN,RETAINING-BOWTIE-1/2" | 1 | $1.37 | |
| 35 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 36 | 6606-928 | HOOK,LATCH-PASSENGER SEAT | 1 | $22.01 | |
| 37 | 6606-945 | HANDLE,LATCH-PASS SEAT | 1 | $12.35 | |
| 38 | 1623-978 | SCREW,SELF TAP-TSPH-ECOSYN-M4X10 | 1 | $1.31 | |
| 39 | 2623-097 | PIN,CLEVIS-10X110 | 1 | $5.09 | |
| 40 | 0609-944 | NUT,RETAINING-OUTLET | 1 | $3.16 | |
| 41 | 0609-945 | COVER,OUTLET-SHIELD | 1 | $2.47 | |
| 42 | 0609-940 | OUTLET,HEATED SHIELD | 1 | $34.95 | |
| 43 | 5706-877 | COVER,SEAT-PASSENGER | 1 | $382.95 | |
| 45 | 0609-869 | PAD, SEAT HEATER | 1 | $192.95 | |
| 47 | 0630-334 | PLUG,ACCESSORY-12VDC | 1 | $5.92 | |
| 48 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
