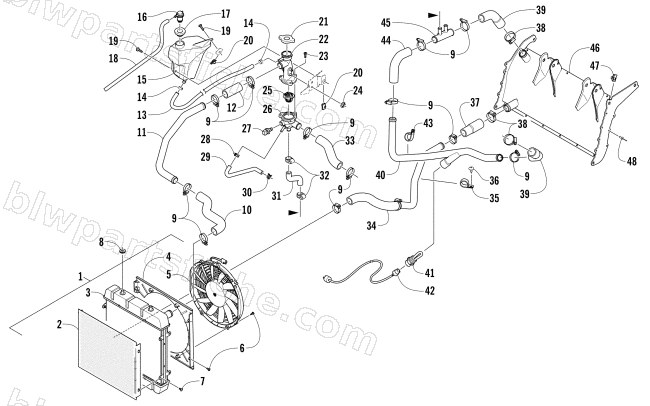

COOLING ASSEMBLY
2017 PANTERA 7000 XT LTD EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0713-127 | RADIATOR,FRONT-ASSY | 1 | $548.95 | |
| 2 | 0413-007 | SCREEN,RADIATOR | 1 | $85.95 | |
| 3 | 0613-148 | RADIATOR,FRONT | 1 | $408.95 | |
| 4 | 0413-203 | SHROUD,FAN | 1 | $114.95 | |
| 5 | 0413-123 | FAN,RADIATOR | 1 | $224.95 | |
| 6 | 0623-378 | SCREW,SELF TAP-PHTRH #8-32 X .50 AB Z&Y | 1 | $0.26 | |
| 7 | 8475-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&CLR | 1 | $0.95 | |
| 8 | 0423-030 | GROMMET(LV 11378) | 1 | $4.26 | |
| 9 | 2623-088 | CLAMP,HOSE-23/35 | 1 | $2.88 | |
| 10 | 0610-978 | HOSE,COOLANT-TUBE/RADIATOR-UPPER | 1 | $17.87 | |
| 12 | 0610-840 | HOSE,25.4mm DIA X 75mm-SAE J30 | 1 | $12.35 | |
| 13 | 0610-970 | HOSE,COOLANT-5/16X.510-25FT | 1 | $69.95 | |
| 14 | 0610-563 | CLAMP, HOSE-13.2MM-15.7MM | 1 | $1.78 | |
| 15 | 0613-149 | TANK,COOLANT-OVERFLOW | 1 | $124.95 | |
| 16 | 1670-787 | VALVE,CHECK | 1 | $34.95 | |
| 17 | 0613-167 | STOPPER,COOLANT TANK | 1 | $4.26 | |
| 18 | 6101-009 | HOSE,.235 ID X .370 OD (50') | 1 | $469.95 | |
| 18 | 6101-001 | HOSE,.235 ID X .370 OD (100') | 1 | $892.95 | |
| 19 | 8408-617 | SCREW,CAP-HFH M6X1.0X16 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 20 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 21 | 2606-284 | CAP, MINI RADIATOR | 1 | $32.95 | |
| 22 | 0613-080 | NECK,FILLER-COOLANT | 1 | $12.35 | |
| 23 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 24 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 25 | 0613-078 | THERMOSTAT-71 | 1 | $66.95 | |
| 26 | 0713-160 | HOUSING,THERMOSTAT-ASSY | 1 | $77.95 | |
| 27 | 0824-051 | SENSOR,COOLANT TEMP (SYNERJECT) | 1 | $19.25 | |
| 28 | 0610-419 | CLAMP, HOSE (14.5), 12.0 MM TO 14.5 MM | 1 | $1.92 | |
| 29 | 0610-950 | HOSE,COOLANT-BYPASS-THERMOSTAT/ENGINE | 1 | $42.95 | |
| 30 | 1623-277 | CLAMP,HOSE-SPRING (12W X 14) | 1 | $4.26 | |
| 31 | 0610-949 | HOSE,COOLANT-BYPASS-THERMOSTAT/T-FITTING | 1 | $42.95 | |
| 32 | 2623-062 | CLAMP,HOSE-12/20 (NORMA) | 1 | $3.02 | |
| 35 | 0423-044 | CLAMP,TUBE-1" ARDEN(COV 1709 ZI) | 1 | $2.61 | |
| 37 | 0610-948 | HOSE,COOLANT-EXHANGER/TUBE | 1 | $42.95 | |
| 38 | 1623-981 | CLAMP,HOSE-25/40 (NORMA) | 1 | $2.88 | |
| 41 | 0609-894 | ELEMENT,HEATING-US | 1 | $82.95 | |
| 42 | 0709-082 | CORD,ENGINE HEATER W/DECAL-US | 1 | $45.95 | |
| 43 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 | |
| 44 | 0610-866 | HOSE,COOLANT-TUBE/EXCH | 1 | $13.73 | |
| 47 | 1623-640 | CLIP,U-NUT M8 | 1 | $3.02 | |
| 48 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
