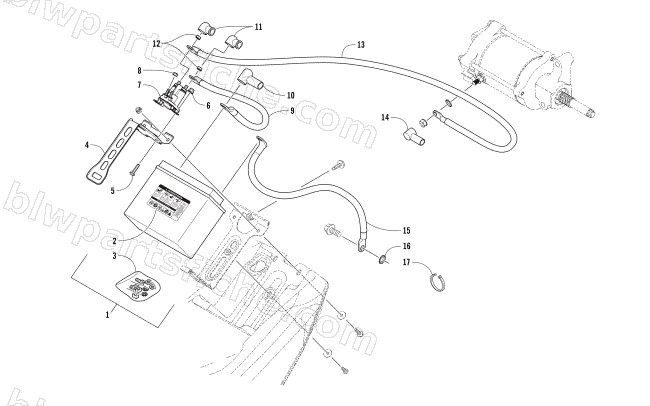

BATTERY ASSEMBLY
2017 M 8000 SNO PRO ES 141
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0645-674 | BRKT,HOLDDOWN BATTERY | 1 | $27.95 | |
| 5 | 8468-616 | SCREW,MACH-TSPNH M6X1.0X16 CL8.8 BLK | 1 | $0.68 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 0645-673 | SOLENOID,STARTER RELAY(MY12 800) | 1 | $46.95 | |
| 8 | 0624-524 | NUT,HEX,8-32 W/STAR WASHER SS | 1 | $0.40 | |
| 9 | 0645-649 | CABLE,BATTERY-SOLENOID | 1 | $19.25 | |
| 10 | 0645-662 | BOOT,BATTERY CABLE | 1 | $8.95 | |
| 11 | 0645-697 | BOOT,BATTERY CABLE | 1 | $19.25 | |
| 12 | 0623-877 | NUT, HEX 1/4-20 Z&Y - SEMS | 1 | $0.26 | |
| 13 | 0645-650 | CABLE,SOLENOID TO STARTER-2 STRK | 1 | $49.95 | |
| 14 | 0645-581 | R/B 0645-019 | 1 | $19.95 | |
| 15 | 0645-648 | CABLE,BATTERY-GROUND-2 STRK | 1 | $38.95 | |
| 16 | 8053-242 | WASHER,LOCK-5/16 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 17 | 0123-903 | TIE,CABLE 11.50 | 1 | $0.54 |
