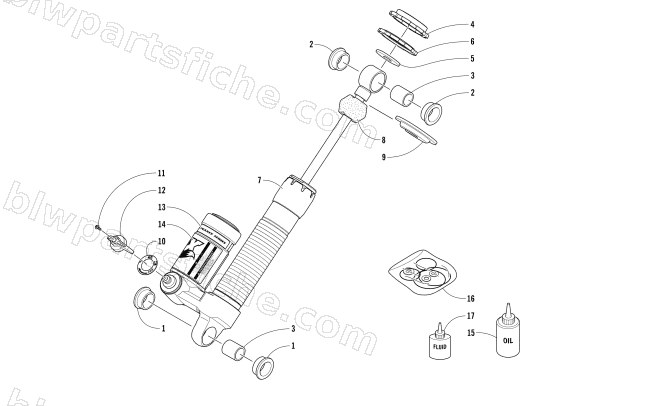

2017 Arctic Cat M 8000 HCR 153 — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2017 M 8000 HCR 153
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1604-222 | BUSHING,REAR ARM SHOCK-.125" LIP | 1 | $17.87 | |
| 2 | 3603-283 | BUSHING,EYELET-1.20" X 1.015" X .824 ID | 1 | $26.95 | |
| 3 | 2604-223 | SLEEVE, .571 X .815 X .950TLG | 1 | $33.95 | |
| 4 | 3603-027 | RING,PRELOAD-2.40 OD X .450 TLG | 1 | $17.87 | |
| 5 | 3603-028 | WASHER, .501 ID X 1.500 OD X 0.125 THK | 1 | $12.95 | |
| 6 | 3603-026 | RING,PRELOAD BACK UP-2.4ODX.240TLG | 1 | $16.49 | |
| 7 | 4604-016 | SPRING, GUIDE-1.82 OD X 1.50 TLG | 1 | $38.95 | |
| 8 | 3603-024 | BUMPER,.498 SHAFT X 1.050 TLG | 1 | $16.49 | |
| 9 | 0403-490 | RETAINER,SPRING-2.55 OD X .34 TLG | 1 | $37.95 | |
| 11 | 3603-377 | SCREW,#4-40 X 1/4 SS | 1 | $12.35 | |
| 13 | 3603-365 | DECAL,BAND-PERFORMANCE SERIES | 1 | $17.87 | |
| 15 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 | |
| 17 | 4639-012 | FLOAT FLUID,FOX RACING SHOX-8 OZ | 1 | $18.95 |
