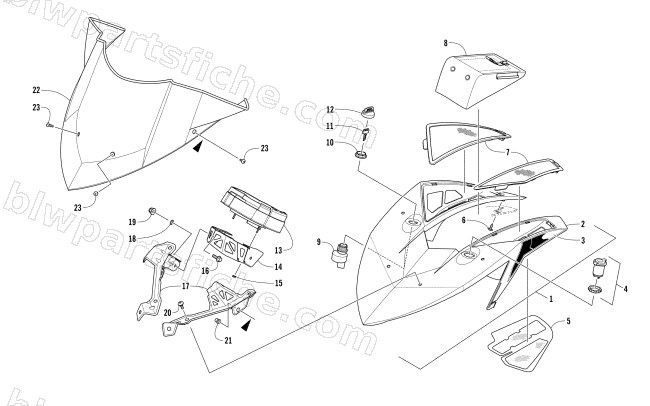

WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2017 M 8000 HARD CORE MOUNTAIN CAT 153 EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 5706-387 | COWL,HDLIGHT-2 STRK-TEAM ARC GRN-ROUTED | 1 | $184.95 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 0608-688 | SCREEN,AIR INTAKE-RH | 1 | $27.95 | |
| 5 | 0608-689 | SCREEN,AIR INTAKE-LH | 1 | $27.95 | |
| 7 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 7 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 8 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 9 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 10 | 0630-264 | WASHER,SPACER-IGNITION SWITCH | 1 | $0.95 | |
| 11 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 12 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 12 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 13 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 14 | 0620-391 | SPEEDO/TACH-PREMIUM-CALIB (XF/M) | 1 | $683.95 | |
| 15 | 5706-252 | BRKT,GAUGE-CENTER-PTD BLK | 1 | $32.95 | |
| 16 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 17 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 18 | 5706-250 | BRKT,GAUGE-RH-PTD BLK | 1 | $22.01 | |
| 18 | 5706-251 | BRKT,GAUGE-LH-PTD BLK | 1 | $22.01 | |
| 19 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 20 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 21 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 22 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 23 | 6606-376 | WINDSHIELD,LOW-BLACK | 1 | $129.95 | |
| 24 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
