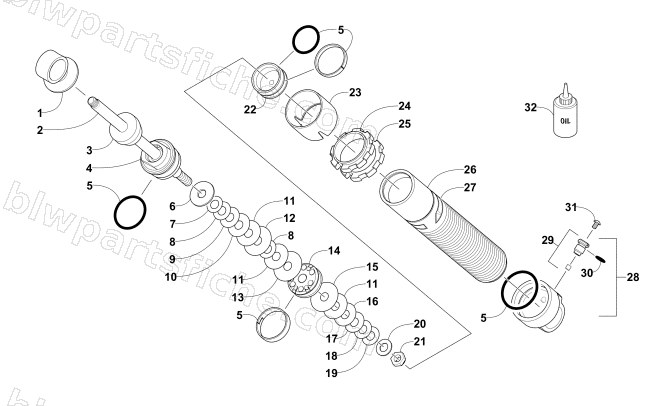

FRONT SUSPENSION SHOCK ABSORBER

2017 M 6000 SE ES 153

Scroll / pinch to zoom · drag to pan · double-click resets

#	Part No.	Description	Qty	Price
1	2603-020	EYELET,SHOCK-SKI-FORGED	1	$73.95
3	3604-740	BUMPER,SHOCK - NBR70	1	$16.49
4	4604-126	BEARING, ENDCAP - LONG - W/BLEED ASSY	1	$49.95
5	4604-121	SEAL/BEARING - REBUILD KIT-37MM	1	$58.95
6	3604-789	WASHER.TOP OUT-29.5 OD X 9.60 ID X 2 THK	1	$3.95
7	3603-096	VALVE,SHOCK-17.78 OD X 0.3 (9.6 ID)	1	$5.95
8	3603-104	VALVE,SHOCK-20.32 OD X 0.2 (9.6ID)	1	$6.95
9	3603-114	VALVE,SHOCK-22.86 OD X 0.2 (9.6 ID)	1	$6.95
10	3603-124	VALVE,SHOCK-25.4 OD X 0.2 (9.6 ID)	1	$6.95
11	3603-144	VALVE,SHOCK-27.94 OD X 0.2 (9.6 ID)	1	$6.95
12	3603-175	VALVE,SHOCK-31.75 OD X .25 (9.6 ID)	1	$6.95
13	3603-184	VALVE,SHOCK-33.02 OD X 0.2 (9.6 ID)	1	$6.95
14	2603-996	PISTON, 37 BORE-2.05 ORIFICE	1	$44.95
15	3603-174	VALVE,SHOCK-31.75 OD X .2 (9.6 ID)	1	$6.95
16	3603-125	VALVE,SHOCK-25.4 OD X .25 (9.6 ID)	1	$6.95
17	3603-115	VALVE,SHOCK-22.86 OD X .25 (9.6 ID)	1	$6.95
18	3603-105	VALVE,SHOCK-20.32 OD X .25 (9.6 ID)	1	$6.95
19	3603-102	VALVE,SHOCK-20.32 OD X 0.15 (9.6 ID)	1	$5.95
20	3604-775	WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID)	1	$3.95
21	3604-739	NUT, HEX - 3/8"-24UNF	1	$4.95
22	3604-772	PISTON.FLOAT-ASSY	1	$35.95
23	3604-773	GUIDE,SPRING-ALUM BODY	1	$32.95
24	2603-014	RING,PRELOAD LOCK-SHOULDERED	1	$53.95
25	3604-779	RING,PRELOAD LOCK	1	$45.95
26	3604-755	BODY SHOCK-ALUM-37 BORE-208MM	1	$125.95
27	1621-728	DECAL,WARNING-HIGH PRESSURE SHOCK	1	$3.44
28	2704-257	BODY,CAP-ALUM BODY-ASSY	1	$164.95
29	3604-751	VALVE,PRESSURE-ASSY	1	$124.95
31	3604-750	SCREW.MACH-#8-32 X 5mm-SS	1	$2.47
32	5639-530	SEMI-SYN SHOCK OIL-1 QUART	1	$26.95
