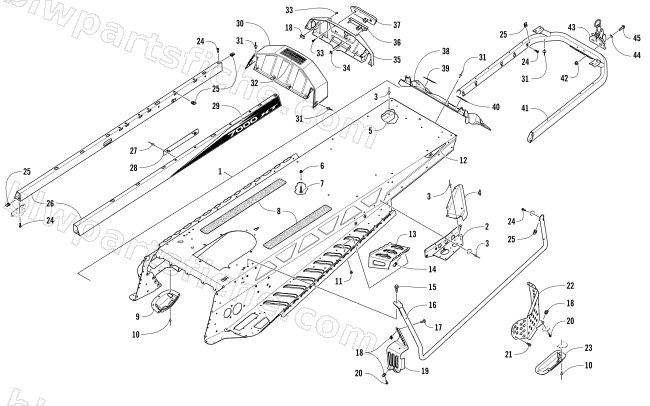

TUNNEL AND REAR RACK ASSEMBLY
2017 BEARCAT 7000 XT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 4 | 1607-386 | CLOSE OFF,RUNNING BOARD-RH | 1 | $29.95 | |
| 4 | 1607-387 | CLOSE OFF,RUNNING BOARD-LH | 1 | $29.95 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 8477-635 | SCREW,MACH-TSTRH M6X1.0X35 Z&BLK | 1 | $0.81 | |
| 9 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 10 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 11 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 12 | 2621-932 | DECAL,REFLECTOR-RED-RH | 1 | $15.11 | |
| 12 | 2621-933 | DECAL,REFLECTOR-RED-LH | 1 | $15.11 | |
| 13 | 1607-288 | FOOTREST,PASSENGER-RH | 1 | $65.95 | |
| 13 | 1607-289 | FOOTREST,PASSENGER-LH | 1 | $65.95 | |
| 14 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 16 | 2707-070 | ROLL,TUNNEL-RH-PTD BLK | 1 | $171.95 | |
| 16 | 2707-071 | ROLL,TUNNEL-LH-PTD BLK | 1 | $171.95 | |
| 17 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 18 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 19 | 0607-996 | TOE STOP,RH - FORMED | 1 | $24.77 | |
| 19 | 0607-997 | TOE STOP,LH - FORMED | 1 | $24.77 | |
| 20 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 21 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 23 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 24 | 2623-059 | SCREW,MACH-TSPNH M6X1X16 MPT Z&Y-W/2353 | 1 | $1.78 | |
| 25 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 26 | 1607-410 | RISER,TUNNEL-RH-MACH | 1 | $225.95 | |
| 26 | 1607-411 | RISER,TUNNEL-LH-MACH | 1 | $225.95 | |
| 27 | 8060-506 | RIVET,BLIND-DH SS54 BLK | 1 | $0.26 | |
| 28 | 6606-947 | PLATE,REINFORCEMENT-PASS SEAT | 1 | $12.35 | |
| 30 | 6606-792 | CLOSE-OFF,TUNNEL-MOLD BLK | 1 | $37.95 | |
| 31 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 33 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 | |
| 34 | 0423-357 | NUT, STAMPED-1/4" (SD 25001 SOH) | 1 | $0.95 | |
| 35 | 6606-889 | CLOSE-OFF,TUNNEL-INNER-MOLD BLK | 1 | $26.95 | |
| 36 | 0609-941 | LIGHT,REVERSE | 1 | $45.95 | |
| 37 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 39 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 40 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 42 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 42 | 8408-812 | SCREW,CAP-HFH M8X1.25X12 CL8.8 Z&Y | 1 | $1.78 | |
| 43 | 4606-156 | HITCH, PINTLE | 1 | $84.95 | |
| 43 | 2707-700 | R/B 2707-912 | 1 | $81.95 | |
| 44 | 8050-242 | WASHER,FLAT- 5/16 X .625 X .063 Z&Y | 1 | $2.06 | |
| 45 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 |
