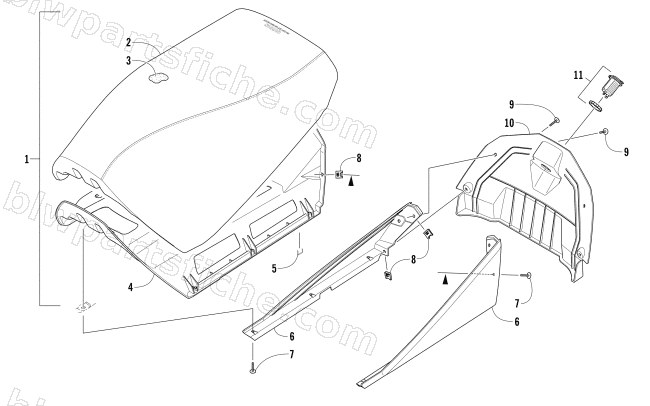

2017 Arctic Cat BEARCAT 7000 XT — SEAT ASSEMBLY
2017 BEARCAT 7000 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 6606-794 | BASE,SEAT-FRONT | 1 | $46.95 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 6 | 6606-894 | FACIA,FRONT SEAT-RH-MOLD BLK | 1 | $19.25 | |
| 6 | 6606-895 | FACIA,FRONT SEAT-LH-MOLD BLK | 1 | $19.25 | |
| 8 | 1623-939 | NUT,SPEED-#10 B "U" TYPE | 1 | $1.23 | |
| 10 | 6606-897 | FACIA,FRONT SEAT-REAR-MOLD BLK | 1 | $33.95 | |
| 11 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 |
