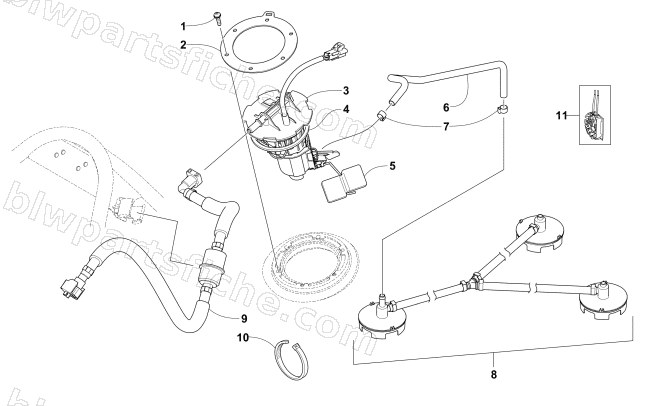

2017 Arctic Cat BEARCAT 7000 XT — FUEL PUMP ASSEMBLY
2017 BEARCAT 7000 XT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0423-898 | SCREW,TSPH-THRD FORM M5X0.8X20MM SEMS | 1 | $0.54 | |
| 2 | 2670-042 | MOUNT,FUEL PUMP | 1 | $26.95 | |
| 4 | 0470-838 | SEAL,FUEL-PUMP | 1 | $3.16 | |
| 5 | 2670-235 | FLOAT,FUEL PUMP-WALBRO 75-22 | 1 | $6.89 | |
| 7 | 0610-704 | CLAMP,HOSE-10.1MM TO 11.8MM | 1 | $2.75 | |
| 8 | 2670-422 | PICKUP,FUEL-MP ASSY | 1 | $209.95 | |
| 10 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0623-751 | CABLE TIE,REUSABLE-('98 440 PRO) | 1 | $0.95 |
