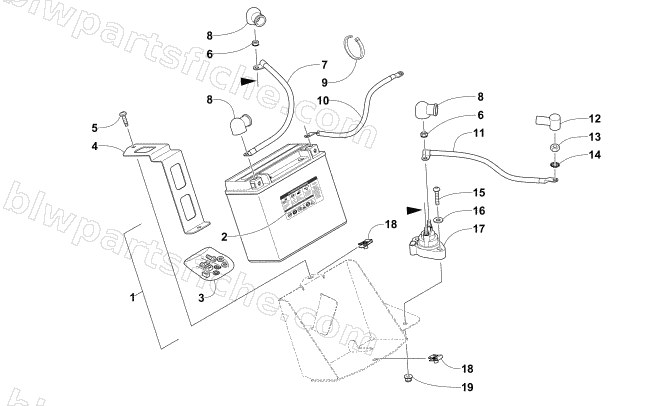

2017 Arctic Cat BEARCAT 7000 XT GROOMER SPECIAL — BATTERY AND TRAY ASSEMBLY
2017 BEARCAT 7000 XT GROOMER SPECIAL
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-406 | BATTERY,SEALED-YTX20-ASSY | 1 | $154.95 | |
| 2 | 0645-430 | LABEL,POISON/DANGER-HORIZ FORMAT | 1 | $1.64 | |
| 3 | 0445-082 | HARDWARE,BATTERY-PACK (010 ATV) | 1 | $10.97 | |
| 4 | 0645-783 | BRKT,HOLDDOWN-BATTERY | 1 | $19.25 | |
| 5 | 2623-059 | SCREW,MACH-TSPNH M6X1X16 MPT Z&Y-W/2353 | 1 | $1.78 | |
| 6 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 7 | 0645-786 | CABLE,BATTERY/SOLENOID | 1 | $38.95 | |
| 8 | 0645-697 | BOOT,BATTERY CABLE | 1 | $19.25 | |
| 9 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 | |
| 10 | 0645-785 | CABLE,BATTERY/GROUND | 1 | $34.95 | |
| 11 | 0645-784 | CABLE,SOLENOID/STARTER | 1 | $43.95 | |
| 12 | 0645-662 | BOOT,BATTERY CABLE | 1 | $8.95 | |
| 13 | 3020-373 | NUT | 1 | $3.44 | |
| 14 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 15 | 8468-630 | SCREW,MACH-TSPNH M6X1.0X30 CL8.8 BLK | 1 | $0.68 | |
| 16 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 18 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 19 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 |
