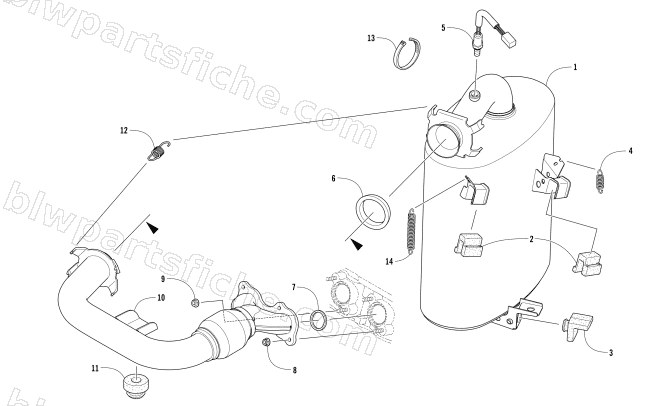

2017 Arctic Cat BEARCAT 3000 LT — EXHAUST ASSEMBLY
2017 BEARCAT 3000 LT
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-997 | RESONATOR, EXHAUST | 1 | $992.95 | |
| 2 | 2612-893 | GROMMET,RUBBER-UPR | 1 | $17.87 | |
| 3 | 2612-706 | GROMMET,RUBBER-LOWER | 1 | $5.65 | |
| 4 | 0612-471 | SPRING,EXHAUST | 1 | $12.35 | |
| 6 | 1612-619 | GASKET,EXHAUST-TAIL PIPE (03 900) | 1 | $26.95 | |
| 7 | 0412-647 | SEAL, EXHAUST - CRUSH | 1 | $2.75 | |
| 8 | 2623-080 | NUT,HEX FLG-TOP LOCK-M6X1.0 CL8 HI TEMP | 1 | $2.47 | |
| 9 | 8424-604 | NUT,HEX-FLG M6X1.0 CL8 RIE SIL | 1 | $0.54 | |
| 11 | 2612-186 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $12.35 | |
| 12 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 13 | 0123-788 | TIE,CABLE-8.5/7.5/7.4 | 1 | $0.12 |
