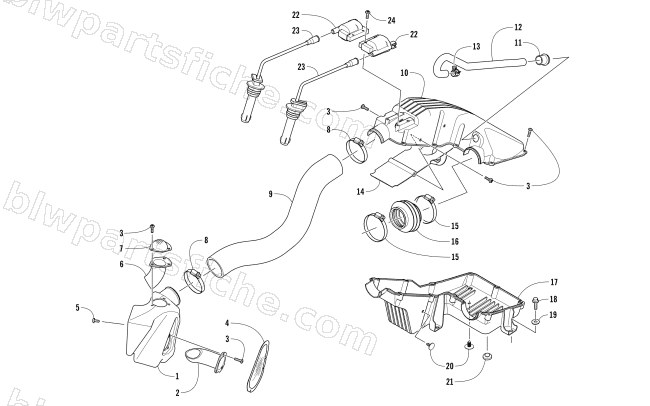

AIR INTAKE ASSEMBLY
2017 BEARCAT 3000 LT
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 3 | 1623-251 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&Y | 1 | $0.26 | |
| 5 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 8 | 0423-066 | CLAMP,HOS-WORM 50mmX9mm (40-60 NOMA) | 1 | $6.47 | |
| 11 | 2670-433 | RETAINER, HOSE-19mm ID | 1 | $2.19 | |
| 12 | 0610-983 | HOSE,BREATHER-FORMED | 1 | $20.63 | |
| 13 | 1623-282 | CLAMP,HOSE-SPRING (12W X 19) | 1 | $4.26 | |
| 18 | 8408-516 | SCREW,CAP-HFH M5X0.8X16 CL8.8 Z&Y | 1 | $1.64 | |
| 19 | 8450-079 | WASHER, FLAT-M5-5.78X20X2.30-Z&Y | 1 | $3.57 | |
| 20 | 0623-544 | PLUG, CHRISTMAS TREE | 1 | $0.54 | |
| 21 | 0406-877 | BUMPER,SEAT | 1 | $3.57 | |
| 22 | 0824-080 | COIL,IGNITION-P145 | 1 | $60.95 | |
| 23 | 0630-335 | WIRE,SPARK PLUG-W/CAP | 1 | $30.95 | |
| 24 | 8468-425 | SCREW,MACH-TSPNH M4X.7X25 CL8.8 BLK | 1 | $0.54 |
