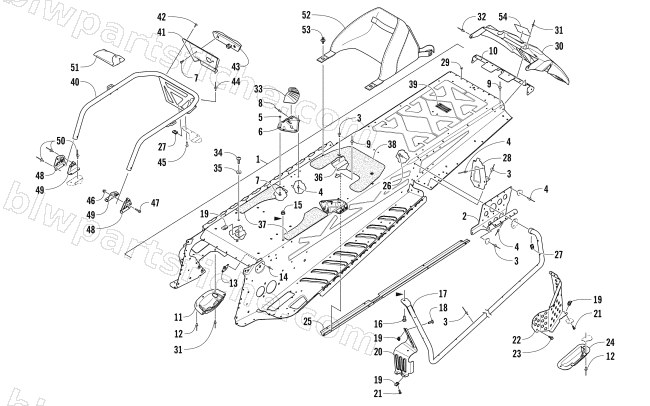

2017 Arctic Cat BEARCAT 3000 LT EARLY BUILD — TUNNEL AND REAR RACK ASSEMBLY
2017 BEARCAT 3000 LT EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 2707-090 | BRKT,MTG-REAR SUSP-RH-PTD BLK | 1 | $43.95 | |
| 2 | 2707-091 | BRKT,MTG-REAR SUSP-LH-PTD BLK | 1 | $43.95 | |
| 3 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 4 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 5 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 6 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 6 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 7 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 8 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 9 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 11 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 12 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 13 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 14 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 15 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 16 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 17 | 1707-602 | ROLL,TUNNEL-RH-PTD BLK | 1 | $203.95 | |
| 17 | 1707-603 | ROLL,TUNNEL-LH-PTD BLK | 1 | $203.95 | |
| 18 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 19 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 20 | 0607-996 | TOE STOP,RH - FORMED | 1 | $24.77 | |
| 20 | 0607-997 | TOE STOP,LH - FORMED | 1 | $24.77 | |
| 21 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 23 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 24 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 25 | 0630-301 | PROTECTOR,TAILLIGHT HARNESS-TOUR | 1 | $43.95 | |
| 26 | 8477-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&BLK | 1 | $0.54 | |
| 27 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 28 | 1607-194 | CLOSE OFF,RUNNING BOARD-RH | 1 | $39.95 | |
| 28 | 1607-195 | CLOSE OFF,RUNNING BOARD-LH | 1 | $39.95 | |
| 29 | 1623-795 | CLIP,CHRISTMAS TREE - 6.35mm HOLE | 1 | $1.92 | |
| 30 | 6606-486 | FLAP,SNOW-BLK | 1 | $33.95 | |
| 31 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 32 | 8061-506 | RIVET,BLIND-LF SS54 BLACK | 1 | $0.95 | |
| 33 | 6606-664 | MOUNT,FUEL TANK-RUBBER-RH | 1 | $17.87 | |
| 33 | 6606-665 | MOUNT,FUEL TANK-RUBBER-LH | 1 | $17.87 | |
| 34 | 8476-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&Y | 1 | $1.37 | |
| 35 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 37 | 6606-814 | PAD,FUEL TANK MOUNT-RH | 1 | $3.99 | |
| 37 | 6606-815 | PAD,FUEL TANK MOUNT-LH | 1 | $3.99 | |
| 38 | 6606-935 | PAD,TUNNEL-FUEL TANK | 1 | $30.95 | |
| 42 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 43 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 44 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 45 | 2623-059 | SCREW,MACH-TSPNH M6X1X16 MPT Z&Y-W/2353 | 1 | $1.78 | |
| 46 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 47 | 8468-635 | SCREW,MACH-TSPNH M6X1.0X35 CL8.8 BLK | 1 | $3.16 | |
| 48 | 5706-450 | BRKT,MOUNTING-RACK-OUTER RH-PTD BLK | 1 | $39.95 | |
| 48 | 5706-451 | BRKT,MOUNTING-RACK-OUTER LH-PTD BLK | 1 | $39.95 | |
| 49 | 5706-448 | BRKT,MOUNTING-RACK-INNER-RH-PTD BLK | 1 | $39.95 | |
| 49 | 5706-449 | BRKT,MOUNTING-RACK-INNER-LH-PTD BLK | 1 | $39.95 | |
| 50 | 8060-706 | RIVET,BLIND-DH SS64 BLK | 1 | $0.40 | |
| 51 | 0744-064 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $67.95 | |
| 53 | 1423-276 | RIVET,PLASTIC-REINSTALLABLE | 1 | $1.23 |
