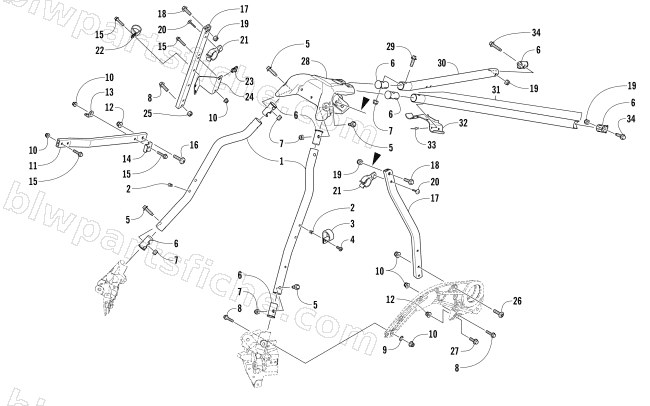

STEERING SUPPORT ASSEMBLY
2017 BEARCAT 3000 LT EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 1623-797 | INSERT,M5X0.8-AL SERIES ALS4-580-3.3 | 1 | $3.16 | |
| 3 | 0423-403 | CLAMP,TUBE-1.125"(ARDEN COV 1909 ZI) | 1 | $12.35 | |
| 4 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 5 | 1623-836 | SCREW,CAP-HFH-M10X1.25X30-CL8.8-Z&Y-MPT | 1 | $2.75 | |
| 6 | 1607-680 | INSERT,UPPER SPAR-10MM MALE | 1 | $3.57 | |
| 7 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 8 | 8408-625 | SCREW,CAP-HFH M6X1.0X25 CL8.8 Z&Y | 1 | $0.54 | |
| 9 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 10 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 11 | 0607-248 | SPAR,SIDE-RH-2 STROKE | 1 | $54.95 | |
| 12 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 13 | 2612-707 | TAB,RESONATOR MTG | 1 | $3.02 | |
| 14 | 2612-783 | BRKT,STOP-RESONATOR | 1 | $4.68 | |
| 15 | 8476-630 | SCREW,MACH-TSTRH M6X1.0X30 Z&Y | 1 | $1.09 | |
| 16 | 8476-835 | SCREW,MACH-TSTRH M8X1.25X35 Z&Y | 1 | $3.59 | |
| 17 | 0607-252 | SUPPORT,STEERING-RH | 1 | $77.95 | |
| 17 | 1607-133 | SPAR,SUPPORT-STEERING-LH | 1 | $73.95 | |
| 18 | 8408-820 | SCREW,CAP-HFH M8X1.25X20 CL8.8 Z&Y | 1 | $0.68 | |
| 19 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 20 | 1623-031 | R/B 2623-165 | 1 | $3.95 | |
| 21 | 0609-937 | CLIP,HARNESS-PLASTIC | 1 | $2.61 | |
| 22 | 1623-722 | CLAMP,CABLE-7/8 INSUL-1/4" MTG | 1 | $1.92 | |
| 23 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 | |
| 24 | 0613-199 | BRKT,MOUNTING-FILLER NECK | 1 | $15.11 | |
| 27 | 8408-825 | SCREW,CAP-HFH M8X1.25X25 CL8.8 Z&Y | 1 | $1.23 | |
| 28 | 2707-532 | SUPPORT,STEERING-PTD BLK-10MM 4 STRK | 1 | $189.95 | |
| 29 | 8408-030 | SCREW,CAP-HFH M10X1.25X30 CL8.8 Z&Y | 1 | $1.78 | |
| 30 | 2707-504 | SPAR,REAR-RH PTD BLK | 1 | $34.95 | |
| 31 | 6706-033 | BRKT,HOLDDOWN-SEATBASE-ASSY | 1 | $45.95 | |
| 32 | 6606-663 | BRKT,HOLDDOWN-SEATBASE | 1 | $12.35 | |
| 33 | 8060-482 | RIVET,BLIND-DH SS52 ZINC | 1 | $0.14 | |
| 34 | 1623-982 | SCREW,CAP-HFH M8X1.25X30 CL8.8-Z&Y-DPT | 1 | $1.23 |
