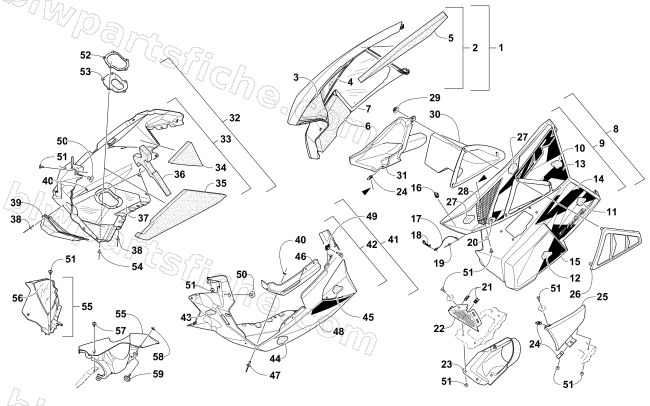

2016 Arctic Cat ZR 9000 LTD 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2016 ZR 9000 LTD 137
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-860 | PANEL,SIDE-RH W/FOAM-TA GRN (4 STROKE) | 1 | $164.95 | |
| 2 | 3718-312 | PANEL,SIDE-RH WITH FOAM-BLK (4 STROKE) | 1 | $259.95 | |
| 3 | 0617-626 | FOAM,UPPER SIDE PANEL-FRT-RH | 1 | $4.26 | |
| 4 | 6606-414 | FOIL,PROTECTIVE-MIDDLE SIDE PANEL-RH | 1 | $1.92 | |
| 5 | 0617-628 | FOAM,UPPER SIDE PANEL-REAR-RH | 1 | $37.95 | |
| 6 | 0617-632 | FOAM,LWR SIDE PANEL-FRT-RH | 1 | $22.01 | |
| 7 | 6606-416 | FOIL,PROTECTIVE-LWR SIDE PANEL-REAR-RH | 1 | $3.57 | |
| 9 | 4718-579 | PANEL,SIDE-LH W/FOAM-TA GRN (TURBO) | 1 | $164.95 | |
| 9 | 4718-557 | PANEL,SIDE-LH-W/FOAM-BLK TURBO | 1 | $460.95 | |
| 10 | 0617-669 | FOAM,UPPER SIDE PANEL-REAR LH-4 STRK | 1 | $12.35 | |
| 11 | 0617-635 | FOAM,LWR SIDE PANEL-REAR-LH | 1 | $12.35 | |
| 12 | 0617-681 | FOAM,LWR SIDE PANEL-FRT-LH | 1 | $5.65 | |
| 16 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 17 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 18 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 19 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 20 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 21 | 1623-052 | NUT,U | 1 | $0.95 | |
| 22 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 23 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 24 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 25 | 2602-801 | DUCT,INTAKE-OUTER-TA GRN | 1 | $19.25 | |
| 25 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 26 | 0608-648 | COVER,DUCT-HEAT-TURBO | 1 | $16.49 | |
| 27 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 28 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 29 | 1623-469 | NUT,STAMPED- 0.330 | 1 | $1.23 | |
| 30 | 0708-596 | DUCT,HEAT-TURBO-ROUTED | 1 | $62.95 | |
| 31 | 1702-367 | DUCT,BELT COOLING-4 STRK-ROUTED | 1 | $42.95 | |
| 33 | 4718-220 | PLATE,SKID-TA GRN-RH W/FOAM | 1 | $217.95 | |
| 33 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 34 | 0617-640 | FOAM,SKID PLATE-REAR-RH | 1 | $3.57 | |
| 35 | 0617-638 | FOAM,SKID PLATE-MIDDLE-RH | 1 | $43.95 | |
| 36 | 0617-636 | FOAM,SKID PLATE-FRT-RH | 1 | $37.95 | |
| 37 | 2612-850 | R/B 3612-325 | 1 | $19.95 | |
| 38 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 39 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 40 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 42 | 4718-221 | PLATE,SKID-TA GRN-LH W/FOAM | 1 | $126.95 | |
| 42 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 43 | 0617-637 | FOAM,SKID PLATE-FRT-LH | 1 | $16.49 | |
| 44 | 0617-639 | FOAM,SKID PLATE-MIDDLE-LH | 1 | $16.49 | |
| 45 | 0617-641 | FOAM,SKID PLATE-REAR-LH | 1 | $3.99 | |
| 46 | 6606-613 | RETAINER,TAB-SIDE PANEL | 1 | $12.35 | |
| 49 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 50 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 51 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 52 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 53 | 2612-799 | SEAL,EXHAUST OUTLET-4 STRK | 1 | $17.87 | |
| 54 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 55 | 3718-302 | PANEL,FILLER W/FOIL-RH | 1 | $19.25 | |
| 55 | 6606-351 | PANEL,FILLER-LH-TURBO-BLK | 1 | $67.95 | |
| 56 | 6606-404 | FOIL,PROTECTIVE-FILLER PANEL-RH | 1 | $2.61 | |
| 57 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 58 | 2623-001 | RETAINER,PUSHNUT-3/16" STUD | 1 | $0.40 | |
| 59 | 1623-999 | SCREW,1" RND KNOB-M5X0.8X20mm LG | 1 | $4.95 |
