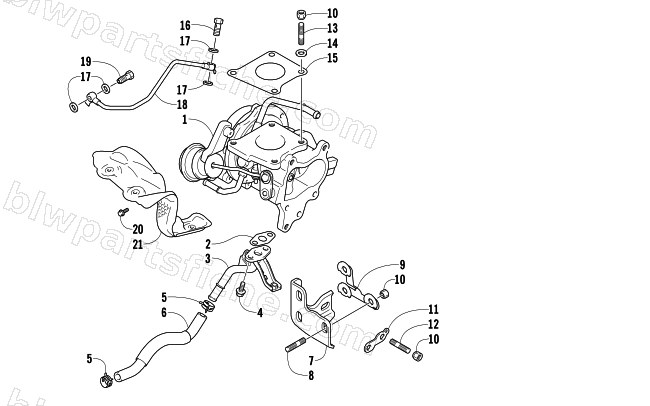

TURBOCHARGER ASSEMBLY
2016 ZR 9000 ET LTD 129
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3007-806 | CHARGER ASSY,TURBO | 1 | $3,137.95 | |
| 2 | 3007-814 | GASKET,OIL DRAIN JOINT | 1 | $17.87 | |
| 3 | 3007-813 | JOINT,OIL DRAIN | 1 | $100.95 | |
| 4 | 3007-371 | BOLT (6X12) | 1 | $3.16 | |
| 5 | 3006-855 | CLIP | 1 | $5.51 | |
| 6 | 3007-815 | HOSE,TURBO OIL DRAIN | 1 | $145.95 | |
| 7 | 3007-797 | BRACKET,TURBO CHARGER | 1 | $93.95 | |
| 8 | 3007-415 | STUD BOLT | 1 | $4.95 | |
| 9 | 3007-800 | WASHER ASSY,TC BRACKET | 1 | $27.95 | |
| 10 | 3006-111 | NUT,8MM '02 660 L/C | 1 | $2.75 | |
| 11 | 3007-799 | WASHER,TC BRACKET | 1 | $13.73 | |
| 12 | 3007-798 | BOLT,TC BRACKET STUD | 1 | $20.63 | |
| 13 | 3007-807 | BOLT,EXH MANIF & TC STUD | 1 | $17.87 | |
| 14 | 3007-793 | WASHER,EXH MANIF | 1 | $2.47 | |
| 15 | 3007-801 | GASKET,EXH MANIF & TC | 1 | $49.95 | |
| 16 | 3007-811 | BOLT,UNION OIL TC SIDE | 1 | $27.95 | |
| 17 | 3006-112 | GASKET 02 660 L/C | 1 | $9.59 | |
| 18 | 0637-328 | PIPE,TURBO OIL INLET-KIT | 1 | $100.95 | |
| 20 | 3007-804 | BOLT,EXH MANIF & TC COVER | 1 | $2.75 | |
| 21 | 3007-803 | COVER,EXH MANIF & TC LOWER | 1 | $159.95 |
