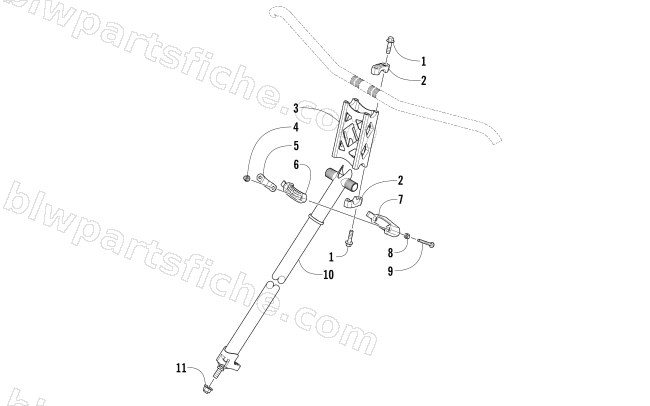

2016 Arctic Cat ZR 8000 SNO PRO RR 129 — STEERING POST ASSEMBLY
2016 ZR 8000 SNO PRO RR 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 2 | 1605-118 | CAP,STEERING | 1 | $5.65 | |
| 3 | 1605-073 | RISER,5.5" HANDLEBAR-MACH | 1 | $105.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 6 | 1605-043 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 7 | 1605-044 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.57 | |
| 8 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 9 | 2623-079 | SCREW,MACH-TSPNH M6X1.0X60 CL8.8 Z&Y | 1 | $1.78 | |
| 10 | 1705-309 | R/B 1705-522 | 1 | $122.95 | |
| 11 | 2623-076 | R/B 2623-202 | 1 | $1.39 |
