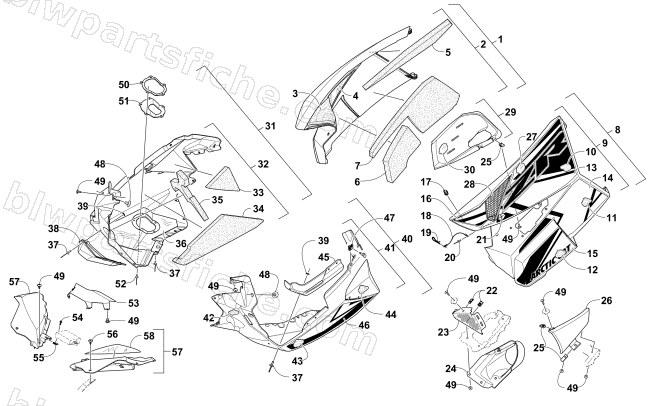

2016 Arctic Cat ZR 8000 LXR ES 137 — SKID PLATE AND SIDE PANEL ASSEMBLY
2016 ZR 8000 LXR ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 3718-180 | PANEL,SIDE-RH WITH FOAM-BLK (2 STROKE) | 1 | $267.95 | |
| 9 | 4718-553 | PANEL,SIDE-LH-W/FOAM-BLK | 1 | $267.95 | |
| 13 | 2621-574 | DECAL,SIDE PANEL-UPR GRN RH | 1 | $43.95 | |
| 13 | 2621-608 | DECAL,SIDE PANEL-UPR ORN RH | 1 | $50.95 | |
| 13 | 2621-575 | DECAL,SIDE PANEL-UPR GRN LH | 1 | $43.95 | |
| 13 | 2621-609 | DECAL,SIDE PANEL-UPR ORN LH | 1 | $50.95 | |
| 14 | 2621-572 | DECAL,SIDE PANEL-LWR GRN RH | 1 | $43.95 | |
| 14 | 2621-606 | DECAL,SIDE PANEL-LWR ORN RH | 1 | $53.95 | |
| 14 | 2621-573 | DECAL,SIDE PANEL-LWR GRN LH | 1 | $43.95 | |
| 14 | 2621-607 | DECAL,SIDE PANEL-LWR ORN LH | 1 | $53.95 | |
| 15 | 2621-580 | DECAL,SIDE PANEL-FWD GRN RH-"ARCTIC CAT" | 1 | $17.87 | |
| 15 | 2621-614 | DECAL,SIDE PANEL-FWD ORN RH-"ARCTIC CAT" | 1 | $17.87 | |
| 15 | 2621-581 | DECAL,SIDE PANEL-FWD GRN LH-"ARCTIC CAT" | 1 | $17.87 | |
| 15 | 2621-615 | DECAL,SIDE PANEL-FWD ORN LH-"A C" | 1 | $17.87 | |
| 16 | 2621-578 | DECAL,SIDE PANEL-UPR FWD GRN RH | 1 | $5.09 | |
| 16 | 2621-612 | DECAL,SIDE PANEL-UPR FWD ORN RH | 1 | $5.09 | |
| 16 | 2621-579 | DECAL,SIDE PANEL-UPR FWD GRN LH | 1 | $5.09 | |
| 16 | 2621-613 | DECAL,SIDE PANEL-UPR FWD ORN LH | 1 | $5.09 | |
| 17 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 18 | 0607-447 | CABLE,5"-HAIRPIN | 1 | $5.37 | |
| 19 | 0605-283 | HAIRPIN,COTTER | 1 | $1.23 | |
| 20 | 8060-486 | RIVET, BLIND-DH SS54 ZINC | 1 | $0.40 | |
| 21 | 8050-127 | WASHER,FLAT- #8 X .375 X .049 Z&Y | 1 | $1.37 | |
| 22 | 1623-052 | NUT,U | 1 | $0.95 | |
| 23 | 6606-925 | SCREEN,INTAKE | 1 | $34.95 | |
| 24 | 2602-794 | DUCT,INTAKE-INNER | 1 | $27.95 | |
| 25 | 1623-030 | NUT,SPEED-#10B U TYPE | 1 | $0.95 | |
| 26 | 2602-793 | DUCT,INTAKE-OUTER-BLK | 1 | $19.25 | |
| 27 | 0619-206 | TAPE,ALUM FOIL - 6" X 30 FT | 1 | $7.77 | |
| 28 | 5706-531 | SCREEN,SIDE PANEL-UPR LH-PTD BLK | 1 | $20.63 | |
| 29 | 2602-637 | R/B 1702-369 | 1 | $35.95 | |
| 31 | 3718-422 | PLATE,SKID-RH-W/FOAM | 1 | $192.95 | |
| 36 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 37 | 2612-754 | SHIELD,RESONATOR-SKID PLATE | 1 | $29.95 | |
| 38 | 0123-802 | WASHER,FLAT .194X.50X.048-Z&Y | 1 | $0.12 | |
| 40 | 3718-789 | PLATE,SKID-REAR LH W/FOAM | 1 | $110.95 | |
| 45 | 2621-582 | DECAL,SKID PLATE-FWD GRN RH | 1 | $22.01 | |
| 45 | 2621-620 | DECAL,SKID PLATE-FWD ORN RH | 1 | $22.01 | |
| 45 | 2621-583 | DECAL,SKID PLATE-FWD GRN LH | 1 | $20.63 | |
| 45 | 2621-621 | DECAL,SKID PLATE-FWD ORN LH | 1 | $22.01 | |
| 46 | 2623-005 | CLIP,RECEPTACLE-1/4 TURN STUD | 1 | $2.61 | |
| 47 | 6606-592 | PIN,RETAINER-BODY PLASTIC | 1 | $3.57 | |
| 48 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 49 | 2612-796 | PLATE,EXHAUST OUTLET | 1 | $25.95 | |
| 50 | 2612-795 | SEAL,EXHAUT OUTLET-2 STRK | 1 | $17.87 | |
| 51 | 8061-710 | RIVET,BLIND-LF SS68 BLACK | 1 | $1.09 | |
| 52 | 6606-942 | SHIELD,HEAT-ECU | 1 | $32.95 | |
| 53 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 54 | 0423-031 | NUT,SPEED M6 X 1.0 U-TYPE | 1 | $0.95 | |
| 55 | 0623-784 | R/B 2623-163 | 1 | $0.35 | |
| 56 | 6606-342 | PANEL,FILLER-RH-BLK | 1 | $19.25 | |
| 56 | 3718-303 | PANEL,FILLER W/FOIL-LH | 1 | $19.25 | |
| 57 | 6606-405 | FOIL,PROTECTIVE-FILLER PANEL-LH | 1 | $27.95 |
