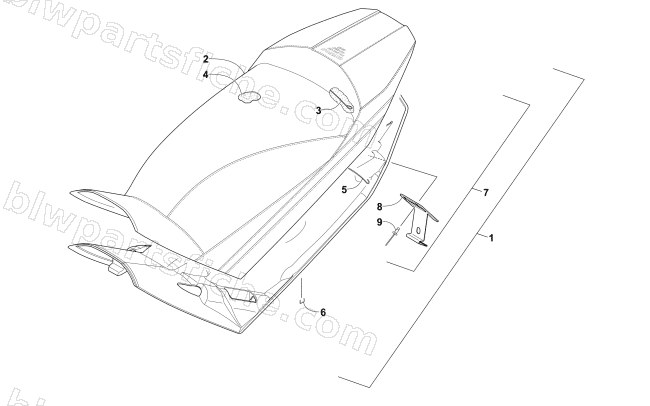

SEAT ASSEMBLY
2016 ZR 8000 LXR ES 137
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6706-015 | SEAT,ASSY-GRN (215) | 1 | $692.95 | |
| 1 | 6706-019 | SEAT,ASSY-ORN (215) | 1 | $713.95 | |
| 2 | 6706-016 | COVER,SEAT-GRN (215) | 1 | $382.95 | |
| 2 | 6706-020 | COVER,SEAT-ORN (215) | 1 | $382.95 | |
| 4 | 0717-215 | FOAM,SEAT (64-70 ILD).48R@4.5 | 1 | $145.95 | |
| 5 | 6606-461 | WIRE,SEAT-3.048 DIA X 279.4 mm | 1 | $1.92 | |
| 6 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 5706-240 | BASE,SEAT-W/SEAT LATCH HOOK | 1 | $65.95 | |
| 8 | 6606-452 | HOOK,SEAT LATCH | 1 | $17.87 | |
| 9 | 8061-686 | RIVET,BLIND-LF SS64 ZINC | 1 | $0.95 |
