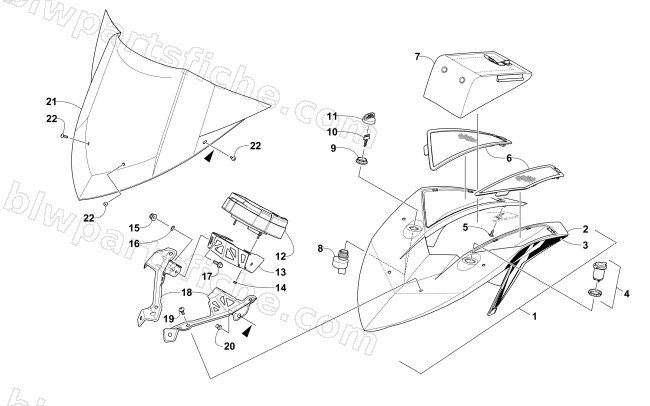

2016 Arctic Cat ZR 8000 LTD 137 ES — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2016 ZR 8000 LTD 137 ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-690 | COWL,HEADLIGHT-BLK-W/DECAL(2 STRK LTD) | 1 | $187.95 | |
| 1 | 4718-696 | COWL,HEADLIGHT-TA GRN-W/DECAL(6/8 LTD) | 1 | $175.95 | |
| 2 | 6606-313 | COWL,HEADLIGHT-BLK | 1 | $141.95 | |
| 2 | 6606-518 | COWL,HEADLIGHT-TEAM ARCTIC GRN-2STRK | 1 | $153.95 | |
| 3 | 2621-416 | DECAL,COWL-RH-BLK (LTD) | 1 | $19.25 | |
| 3 | 2621-378 | DECAL,COWL-RH-GRN (LTD) | 1 | $19.25 | |
| 3 | 2621-417 | DECAL,COWL-LH-BLK (LTD) | 1 | $19.25 | |
| 3 | 2621-379 | DECAL,COWL-LH-GRN (LTD) | 1 | $19.25 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 6 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 7 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 8 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 9 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 10 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 10 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 11 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 12 | 0620-389 | SPEEDO,LCD-2 STROKE HP CALIB-DLX | 1 | $683.95 | |
| 13 | 5706-252 | BRKT,GAUGE-CENTER-PTD BLK | 1 | $32.95 | |
| 14 | 0423-493 | NUT,HEX-M4-.7 W/STAR WSR | 1 | $0.26 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 18 | 5706-250 | BRKT,GAUGE-RH-PTD BLK | 1 | $22.01 | |
| 18 | 5706-251 | BRKT,GAUGE-LH-PTD BLK | 1 | $22.01 | |
| 19 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 20 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 21 | 6606-134 | WINDSHIELD,MID-BLACK | 1 | $145.95 | |
| 21 | 6606-624 | WINDSHIELD,MID-TEAM ARC GRN | 1 | $150.95 | |
| 22 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
