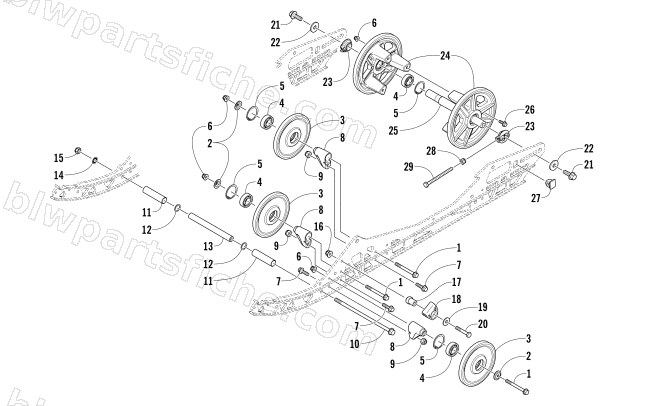

2016 Arctic Cat ZR 8000 LTD 129 ES ET — IDLER WHEEL ASSEMBLY
2016 ZR 8000 LTD 129 ES ET
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8413-675 | SCREW,CAP-HFH M6X1.0X75 CL10.9 SILV | 1 | $3.16 | |
| 2 | 2623-025 | WASHER,STEPPED-6mm ID X 26mm OD-MZ&B | 1 | $1.37 | |
| 3 | 3604-039 | WHEEL,IDL-5.63 W.787"ID BLK (NO SPOKE) | 1 | $53.95 | |
| 4 | 3604-033 | BEARING,WHL-NSK CHINA 6004-W/ENS GREASE | 1 | $20.63 | |
| 5 | 0623-946 | RING,INTERNAL RETAINING-#165 | 1 | $2.06 | |
| 6 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 7 | 8413-620 | SCREW,CAP-HFH M6X1.0X20 CL10.9 SILV | 1 | $0.95 | |
| 8 | 3604-899 | BLOCK,MTG-IDLER WHEEL-TALL (MAG) | 1 | $8.21 | |
| 9 | 8422-602 | NUT,HEX-THK NYL M6X1.00 CL8 Z&Y | 1 | $0.40 | |
| 10 | 1423-064 | R/B 1423-431 | 1 | $20.95 | |
| 11 | 3604-083 | SPACER,FRONT ARM SHOCK | 1 | $12.35 | |
| 12 | 0623-912 | WASHER,FLAT-.890 X 1.19 X .060 Z&Y | 1 | $0.95 | |
| 13 | 3604-269 | AXLE,ALUM-22.2 X 222.2 | 1 | $60.95 | |
| 14 | 1623-992 | WASHER,LOCK-M10 INTL TOOTH TYP J Z&C | 1 | $0.26 | |
| 15 | 8422-002 | NUT,HEX-THK NYL M10X1.25 CL8 Z&Y | 1 | $0.95 | |
| 16 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 17 | 3604-204 | BLOCK,SLIDE-SPRING-PM-1.20" | 1 | $13.73 | |
| 18 | 2604-515 | SLIDE, SPRING-SHORT | 1 | $5.92 | |
| 19 | 8450-133 | WASHER,FLAT-M8-9.12 X 25.40 X 2.30Z&Y | 1 | $0.28 | |
| 20 | 8408-855 | SCREW,CAP-HFH M8X1.25X55 CL8.8 Z&Y | 1 | $1.92 | |
| 21 | 8413-031 | SCREW,CAP-HFH M10X1.25X30 CL10.9 W/2353 | 1 | $2.61 | |
| 22 | 1623-931 | WASHER,FLAT-ALUM-M10X29 | 1 | $1.50 | |
| 23 | 3604-641 | BUSHING,ADJUSTER-REAR WHEEL | 1 | $6.75 | |
| 24 | 4604-138 | WHEEL,IDL-TRI HUB-7.12 W/.787 ID | 1 | $66.95 | |
| 25 | 3604-640 | AXLE,XBRC-REAR WHEEL-215.9mm | 1 | $54.95 | |
| 26 | 8408-620 | SCREW,CAP-HFH M6X1.0X20 CL8.8 Z&Y | 1 | $1.37 | |
| 27 | 3604-647 | ADJUSTER,TRACK-8mm-CAST | 1 | $3.71 | |
| 28 | 8422-802 | NUT,HEX-THK NYL M8x1.25 CL8 Z&Y | 1 | $0.40 | |
| 29 | 1623-682 | SCREW,CAP-HH-M8 X 1.25 X 100 Z&Y | 1 | $1.78 |
