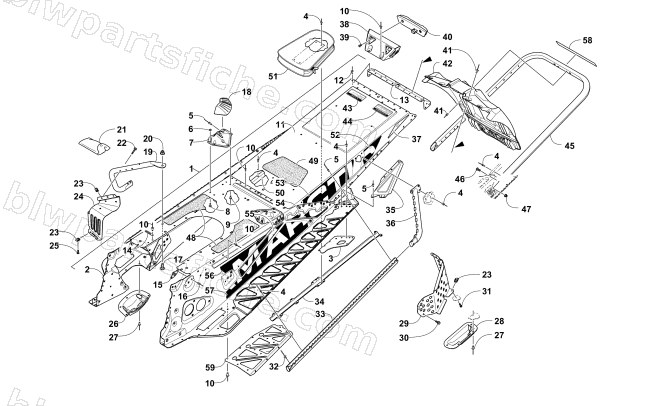

2016 Arctic Cat ZR 7000 RR 129 — TUNNEL, REAR BUMPER, AND SNOWFLAP ASSEMBLY
2016 ZR 7000 RR 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2707-421 | CHASSIS,128" 4 STRK 5 RR-PTD BLK | 1 | $2,379.95 | |
| 1 | 2707-514 | TUNNEL, ZR7 RR-S/P ASSY-PTD BLK | 1 | $1,110.95 | |
| 2 | 2707-512 | TUNNEL,FRONT-ZR7 RR-S/P ASSY-PTD BLK | 1 | $718.95 | |
| 5 | 1623-241 | RIVET,3/16 HUCK-M6 | 1 | $1.92 | |
| 6 | 8422-502 | NUT, M5 X 0.8 NYLOC - YL ZN | 1 | $0.40 | |
| 7 | 1707-692 | BRKT,SPAR SUPPORT-RH-PTD BLK | 1 | $30.95 | |
| 7 | 1707-693 | BRKT,SPAR SUPPORT-LH-PTD BLK | 1 | $38.95 | |
| 8 | 8476-512 | SCREW,MACH-TSTRH M5X0.8X12 Z&Y | 1 | $1.23 | |
| 9 | 1623-257 | RIVET,3/16 HUCK-M5 | 1 | $2.06 | |
| 10 | 8060-702 | RIVET,BLIND-DH SS62 BLK | 1 | $0.26 | |
| 11 | 2707-395 | TUNNEL,REAR-128"-PTD BLK | 1 | $201.95 | |
| 12 | 8060-504 | RIVET,BLIND-DH SS53 BLK | 1 | $0.26 | |
| 13 | 1707-725 | END CAP,TUNNEL-PTD BLK | 1 | $38.95 | |
| 14 | 1623-984 | CLAMP,WIRE - 76.14MM LG W/6.25 HOLE | 1 | $6.20 | |
| 15 | 0608-631 | PLATE,NUT-PTO-ENG/CHASSIS | 1 | $27.95 | |
| 16 | 8060-708 | RIVET,BLIND-DH SS66 BLK | 1 | $1.37 | |
| 17 | 8476-820 | SCREW,MACH-TSTRH M8X1.25X20 Z&Y | 1 | $0.95 | |
| 18 | 6606-664 | MOUNT,FUEL TANK-RUBBER-RH | 1 | $17.87 | |
| 18 | 6606-665 | MOUNT,FUEL TANK-RUBBER-LH | 1 | $17.87 | |
| 19 | 1707-454 | HOOK,TOE-RH PTD BLK | 1 | $65.95 | |
| 19 | 1707-455 | HOOK,TOE-LH PTD BLK | 1 | $65.95 | |
| 20 | 8427-802 | NUT,HEX FLG-NYL LOCK M8X1.25 CL8 Z&Y | 1 | $0.54 | |
| 21 | 0744-088 | KIT,TOOL BAG-4 STROKE-ASSY | 1 | $93.95 | |
| 22 | 8468-535 | SCREW,MACH-TSPNH M5X0.8X35 CL8.8 BLK | 1 | $0.95 | |
| 23 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 24 | 1707-556 | TOE STOP,RH - FORMED-PTD BLK | 1 | $29.95 | |
| 24 | 1707-557 | TOE STOP,LH - FORMED-PTD BLK | 1 | $29.95 | |
| 25 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 26 | 1607-109 | PROTECTOR,CHAIN CASE | 1 | $5.51 | |
| 27 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 | |
| 28 | 0607-351 | PROTECTOR,BRAKE DISC-BOTTOM | 1 | $12.35 | |
| 29 | 2707-044 | COVER,SHIELD-BRAKE DISC-PTD BLK | 1 | $53.95 | |
| 30 | 8408-613 | SCREW,CAP-HFH M6X1.0X12 CL8.8 Z&Y W/2353 | 1 | $1.50 | |
| 31 | 8470-520 | SCREW,MACH-TSPNH M5X.8X20 CL8.8 Z&Y | 1 | $0.40 | |
| 32 | 1623-130 | RIVET,3/16 HUCK-M4 | 1 | $1.64 | |
| 33 | 2707-170 | ROLL,TUNNEL-RH-PTD BLK | 1 | $77.95 | |
| 33 | 2707-171 | ROLL,TUNNEL-LH-PTD BLK | 1 | $77.95 | |
| 34 | 0630-315 | PROTECTOR,TAILLIGHT HARNESS-128" | 1 | $27.95 | |
| 35 | 1707-698 | GUSSET,RUNNING BOARD-RH-PTD BLK | 1 | $27.95 | |
| 35 | 1707-699 | GUSSET,RUNNING BOARD-LH-PTD BLK | 1 | $27.95 | |
| 36 | 1707-700 | GUSSET,TUNNEL-RH-PTD BLK | 1 | $30.95 | |
| 36 | 1707-701 | GUSSET,TUNNEL-LH-PTD BLK | 1 | $29.95 | |
| 37 | 0621-990 | DECAL,REFLECTOR-RED | 1 | $15.11 | |
| 38 | 0730-227 | HOUSING,TAILLIGHT-PTD BLK | 1 | $38.95 | |
| 39 | 8470-510 | SCREW,MACH-TSPNH M5X.8X10 CL8.8 Z&Y | 1 | $0.68 | |
| 40 | 0609-898 | TAILLIGHT,RED | 1 | $66.95 | |
| 41 | 8061-706 | RIVET,BLIND-LF SS64 BLACK | 1 | $0.95 | |
| 42 | 6606-394 | FLAP,SNOW-MTN-BLK | 1 | $106.95 | |
| 43 | 5611-853 | DECAL,WARNING-TOWING/TRACK-ENGLISH | 1 | $2.47 | |
| 44 | 5611-852 | DECAL,WARNING-TOWING/TRACK-FRENCH | 1 | $2.47 | |
| 45 | 2707-580 | BUMPER,REAR-129"-PTD-TA GRN | 1 | $101.95 | |
| 46 | 8476-620 | SCREW,MACH-TSTRH M6X1.0X20 Z&Y | 1 | $0.40 | |
| 47 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 48 | 6606-814 | PAD,FUEL TANK MOUNT-RH | 1 | $3.99 | |
| 48 | 6606-815 | PAD,FUEL TANK MOUNT-LH | 1 | $3.99 | |
| 49 | 6606-816 | PAD,TUNNEL-FUEL TANK | 1 | $12.35 | |
| 50 | 1607-454 | PROTECTOR,TUNNEL-LASERED 128" | 1 | $60.95 | |
| 51 | 6606-615 | BAG,BELT | 1 | $46.95 | |
| 52 | 2621-324 | DECAL,TUNNEL-1 RH | 1 | $5.09 | |
| 52 | 2621-325 | DECAL,TUNNEL-1 LH | 1 | $5.09 | |
| 53 | 2621-326 | DECAL,TUNNEL-2 RH | 1 | $27.95 | |
| 53 | 2621-327 | DECAL,TUNNEL-2 LH | 1 | $27.95 | |
| 54 | 2621-328 | DECAL,TUNNEL-3 RH | 1 | $16.49 | |
| 54 | 2621-329 | DECAL,TUNNEL-3 LH | 1 | $16.49 | |
| 55 | 2621-332 | DECAL,TUNNEL-5 RH | 1 | $17.87 | |
| 55 | 2621-333 | DECAL,TUNNEL-5 LH | 1 | $17.87 | |
| 56 | 2621-334 | DECAL,TUNNEL-6 RH | 1 | $26.95 | |
| 56 | 2621-335 | DECAL,TUNNEL-6 LH | 1 | $26.95 | |
| 57 | 2621-330 | DECAL,TUNNEL-4 RH | 1 | $49.95 | |
| 57 | 2621-331 | DECAL,TUNNEL-4 LH | 1 | $49.95 | |
| 58 | 2621-346 | DECAL,REAR BUMPER-"SNO PRO" | 1 | $12.35 | |
| 59 | 2707-172 | SUPPORT,RUNNING BOARD-RH-PTD BLK | 1 | $106.95 | |
| 59 | 2707-173 | SUPPORT,RUNNING BOARD-LH-PTD BLK | 1 | $106.95 |
