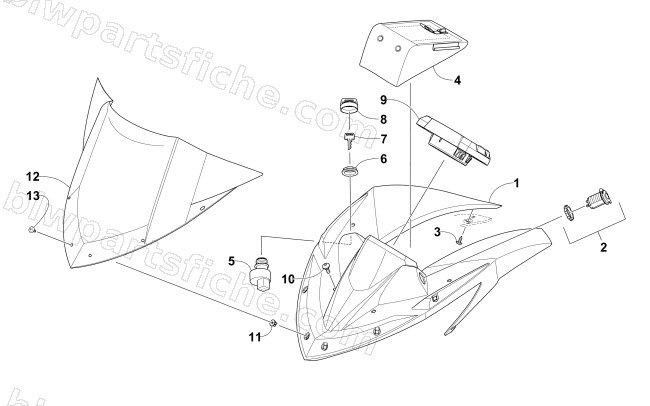

2016 Arctic Cat ZR 7000 EL TIGRE LTD 129 — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2016 ZR 7000 EL TIGRE LTD 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-628 | COWL,HEADLIGHT-Z3-BLK | 1 | $185.95 | |
| 2 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 3 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 4 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 5 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 6 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 7 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 7 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 8 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 9 | 0720-029 | R/B 0720-036 | 1 | $709.95 | |
| 10 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 11 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 12 | 6606-865 | WINDSHIELD,MID-Z3 BLACK | 1 | $145.95 | |
| 13 | 2623-017 | SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW | 1 | $1.37 |
