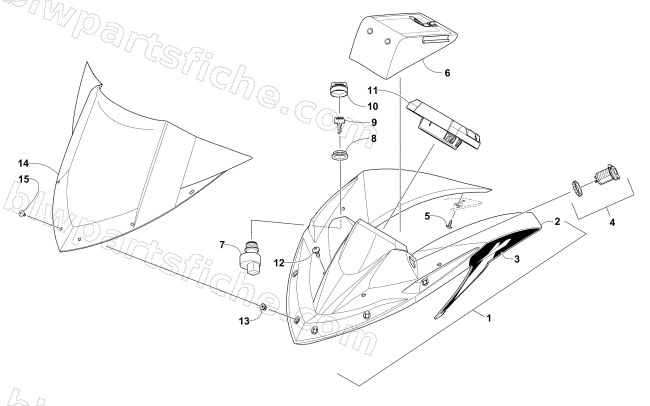

WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2016 ZR 7000 137 LTD EARLY BUILD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-691 | COWL,HEADLIGHT-BLK-W/DECAL(7000 LTD) | 1 | $168.95 | |
| 2 | 6606-628 | COWL,HEADLIGHT-Z3-BLK | 1 | $185.95 | |
| 3 | 2621-417 | DECAL,COWL-LH-BLK (LTD) | 1 | $19.25 | |
| 3 | 2621-416 | DECAL,COWL-RH-BLK (LTD) | 1 | $19.25 | |
| 4 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 5 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 6 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 7 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 8 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 9 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 9 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 10 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 11 | 0720-029 | R/B 0720-036 | 1 | $709.95 | |
| 12 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 13 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 14 | 6606-865 | WINDSHIELD,MID-Z3 BLACK | 1 | $145.95 | |
| 15 | 2623-017 | SCREW,SELF-TAP-TSTRH-M6X12-BOSCRW | 1 | $1.37 |
