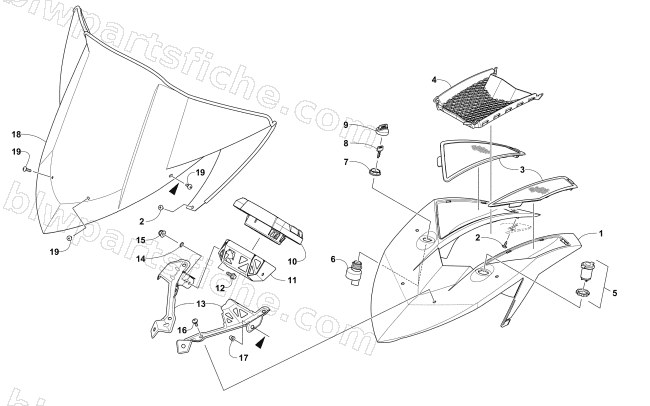

WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2016 ZR 6000 R XC
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-313 | COWL,HEADLIGHT-BLK | 1 | $141.95 | |
| 2 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 3 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 3 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 4 | 6606-556 | VENT,POD | 1 | $33.95 | |
| 5 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 6 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 7 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 8 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 8 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 9 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 10 | 0720-031 | R/B 0720-045 | 1 | $667.95 | |
| 11 | 6606-714 | BRKT,GAUGE-CENTER | 1 | $54.95 | |
| 12 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 13 | 6606-130 | BRKT,GAUGE-RH | 1 | $20.63 | |
| 13 | 6606-131 | BRKT,GAUGE-LH | 1 | $11.79 | |
| 14 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 15 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 16 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 17 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 18 | 6606-513 | WINDSHIELD,TALL-SMOKE (XC) | 1 | $172.95 | |
| 19 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
