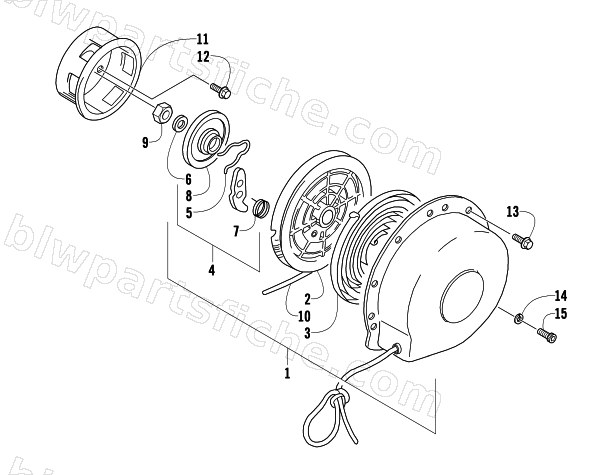

2016 Arctic Cat ZR 6000 R SX — RECOIL STARTER
2016 ZR 6000 R SX
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3006-915 | STARTER ASS'Y, RECOIL | 1 | $305.95 | |
| 2 | 3003-179 | ROLLER,STARTER | 1 | $68.95 | |
| 3 | 3002-921 | SPRING,STARTER | 1 | $46.95 | |
| 4 | 3006-457 | RACHET SET | 1 | $49.95 | |
| 8 | 3006-475 | PLATE FRICTION | 1 | $34.95 | |
| 9 | 3006-456 | NUT,8MM | 1 | $1.95 | |
| 10 | 3006-889 | ROPE,STARTER-C.T.L(6MM DIA)(203 CM) | 1 | $27.95 | |
| 11 | 3007-744 | PULLEY,STARTER | 1 | $71.95 | |
| 12 | 3007-457 | BOLT | 1 | $3.16 | |
| 13 | 3007-609 | BOLT | 1 | $3.44 | |
| 14 | 3007-903 | WASHER,LOCK-RECOIL STARTER | 1 | $3.16 | |
| 15 | 3423-889 | BOLT | 1 | $4.13 |
