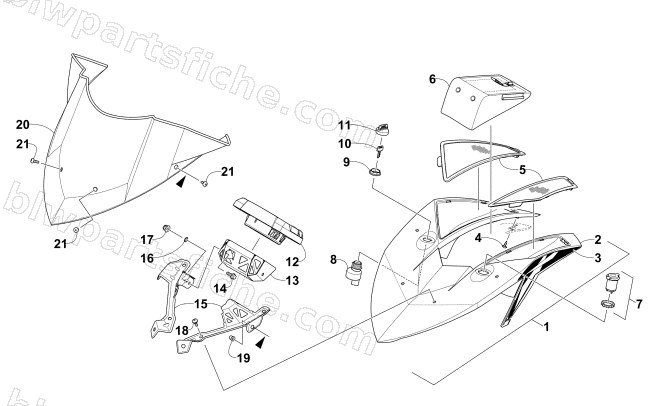

2016 Arctic Cat ZR 6000 LTD 129 ES — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2016 ZR 6000 LTD 129 ES
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 4718-696 | COWL,HEADLIGHT-TA GRN-W/DECAL(6/8 LTD) | 1 | $175.95 | |
| 2 | 6606-518 | COWL,HEADLIGHT-TEAM ARCTIC GRN-2STRK | 1 | $153.95 | |
| 3 | 2621-378 | DECAL,COWL-RH-GRN (LTD) | 1 | $19.25 | |
| 3 | 2621-379 | DECAL,COWL-LH-GRN (LTD) | 1 | $19.25 | |
| 4 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 5 | 0608-736 | SCREEN,INTAKE-INJ MOLD-RH | 1 | $19.25 | |
| 5 | 0608-737 | SCREEN,INTAKE-INJ MOLD-LH | 1 | $19.25 | |
| 6 | 6606-566 | BAG,GOGGLE | 1 | $77.95 | |
| 7 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 8 | 0609-910 | SWITCH,OPEN IGNITION-2012 | 1 | $68.95 | |
| 9 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 10 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 10 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 11 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 12 | 0720-031 | R/B 0720-045 | 1 | $667.95 | |
| 13 | 5706-681 | BRKT,GAUGE-CENTER-PTD BLK | 1 | $60.95 | |
| 14 | 8410-616 | SCREW,CAP-HFH M6X1.0X16 CL8.8 RIE BLK | 1 | $1.37 | |
| 15 | 5706-250 | BRKT,GAUGE-RH-PTD BLK | 1 | $22.01 | |
| 15 | 5706-251 | BRKT,GAUGE-LH-PTD BLK | 1 | $22.01 | |
| 16 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 17 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 18 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 19 | 1623-764 | NUT EXPANSION-M5-0.8 | 1 | $5.45 | |
| 20 | 6606-624 | WINDSHIELD,MID-TEAM ARC GRN | 1 | $150.95 | |
| 21 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 |
