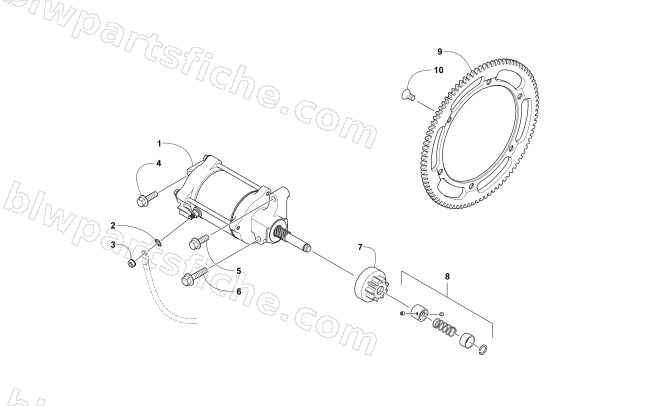

2016 Arctic Cat ZR 6000 EL TIGRE ES 129 — STARTER MOTOR ASSEMBLY
2016 ZR 6000 EL TIGRE ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0745-396 | STARTER,ELECTRIC - ASSY | 1 | $571.95 | |
| 2 | 8053-212 | WASHER,LOCK-1/4 EXT TOOTH TYP A Z&Y | 1 | $0.12 | |
| 3 | 0623-038 | NUT,HEX M6 Z&Y-SEMS (W/WASHER) | 1 | $0.26 | |
| 5 | 8412-841 | SCREW,CAP-HFH M8X1.25X40 CL8.8 W/2353 | 1 | $4.26 | |
| 7 | 0645-713 | R/B 0645-853 | 1 | $159.95 | |
| 8 | 0745-398 | STOPPER,PINION-KIT | 1 | $43.95 | |
| 9 | 0745-403 | RING GEAR,ELECTRIC START-TREATED-CWI | 1 | $151.95 | |
| 10 | 1623-821 | SCREW,MACH-TSFH M8X1.25X14 CL10.9Z&Y | 1 | $8.21 |
