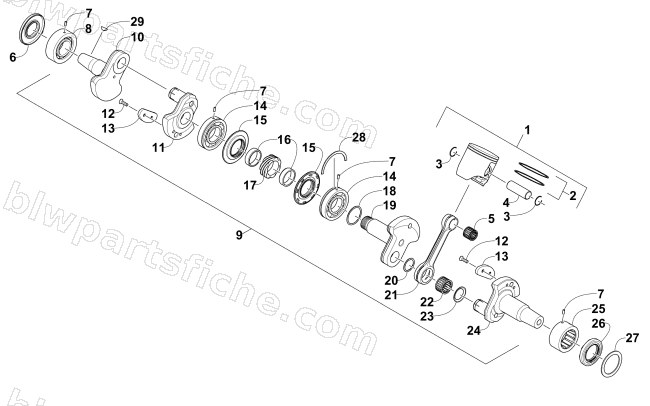

2016 Arctic Cat ZR 6000 EL TIGRE ES 129 — PISTON AND CRANKSHAFT
2016 ZR 6000 EL TIGRE ES 129
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0905-096 | R/B 0905-169 | 1 | $263.95 | |
| 2 | 0905-095 | RING,73.8-CAST IRON (SET OF 2) | 1 | $120.95 | |
| 3 | 0931-006 | CIRCLIP- 20MM (SET OF 2) | 1 | $12.95 | |
| 4 | 0905-009 | PIN, PISTON | 1 | $38.95 | |
| 5 | 0932-010 | BEARING, PISTON PIN | 1 | $41.95 | |
| 6 | 0930-039 | SEAL,OIL-MAG (35X75X7) | 1 | $19.25 | |
| 7 | 0929-004 | DOWEL, 4 X 10 | 1 | $10.97 | |
| 8 | 0932-004 | R/B 0932-030 | 1 | $190.95 | |
| 9 | 1905-001 | CRANKSHAFT,600-RCW ASSY | 1 | $2,058.95 | |
| 10 | 0905-002 | WEB,CRANKSHAFT-MAG | 1 | $251.95 | |
| 11 | 0905-004 | WEB, CRANKSHAFT-WHEEL | 1 | $251.95 | |
| 12 | 0905-045 | SCREW,CRANKSHAFT BALANCER | 1 | $1.37 | |
| 13 | 0905-040 | BALANCER,CRANKSHAFT | 1 | $20.63 | |
| 14 | 0932-001 | R/B 0932-028 | 1 | $56.95 | |
| 15 | 0930-028 | SEAL,OIL-MID CRANKSHAFT | 1 | $37.95 | |
| 16 | 0905-047 | SPACER,MIDDLE OIL SEAL | 1 | $76.95 | |
| 17 | 0905-041 | GEAR,OIL PUMP DRIVE (R10:7) | 1 | $117.95 | |
| 18 | 0905-044 | SHIM, CRANKSHAFT- 40X46X1 | 1 | $13.73 | |
| 19 | 0905-003 | WEB,CRANKSHAFT-MIDDLE | 1 | $251.95 | |
| 20 | 0905-017 | SHIM, CONROD-27X33X1 | 1 | $12.35 | |
| 21 | 0905-006 | CONNECTING ROD, 130 | 1 | $110.95 | |
| 22 | 0932-008 | BEARING, CONROD, 27X34X20W | 1 | $180.95 | |
| 23 | 0905-016 | SHIM, CONROD-SPECIAL | 1 | $30.95 | |
| 24 | 0905-005 | WEB, CRANKSHAFT-PTO | 1 | $382.95 | |
| 25 | 0932-009 | BEARING, CRANKSHAFT-PTO | 1 | $125.95 | |
| 26 | 0930-051 | SEAL,OIL-PTO (40X64X8) | 1 | $30.95 | |
| 27 | 0930-024 | SPACER,OIL SEAL | 1 | $2.06 | |
| 28 | 0905-052 | C-RING,CRANKSHAFT-75mm | 1 | $24.77 | |
| 29 | 0829-006 | WOODRUFF, CB SHAFT | 1 | $4.13 |
