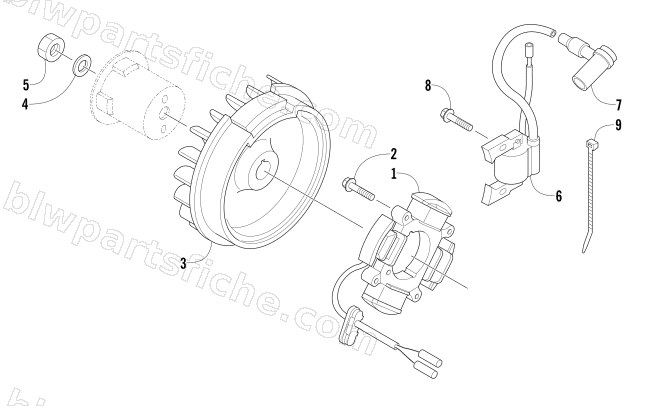

2016 Arctic Cat ZR 120 — MAGNETO
2016 ZR 120
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-006 | STATOR | 1 | $221.95 | |
| 2 | 3020-092 | SCREW, CAP | 1 | $13.73 | |
| 3 | 3020-007 | ROTOR/FLYWHEEL | 1 | $375.95 | |
| 4 | 3020-108 | WASHER | 1 | $1.64 | |
| 5 | 3020-095 | NUT | 1 | $6.89 | |
| 6 | 3020-076 | COIL, IGNITION-ASSY | 1 | $152.95 | |
| 7 | 3020-075 | CAP, SPARK PLUG | 1 | $33.95 | |
| 8 | 3020-122 | SCREW, CAP | 1 | $3.44 | |
| 9 | 3020-077 | TIE, CABLE | 1 | $1.78 |
