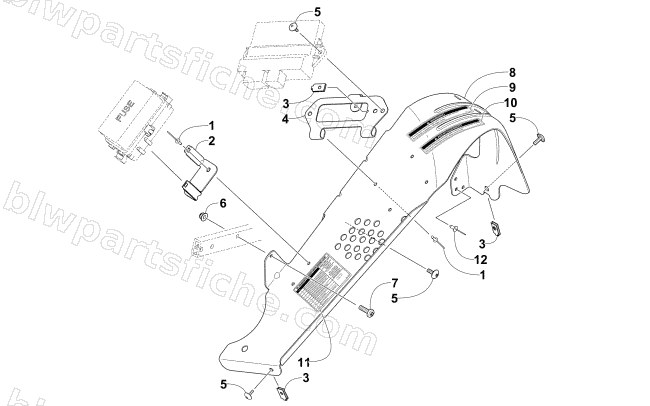

2016 Arctic Cat XF 9000 HIGH COUNTRY LTD 141 — BELT GUARD ASSEMBLY
2016 XF 9000 HIGH COUNTRY LTD 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8060-682 | RIVET,BLIND-DH SS62 ZINC | 1 | $0.12 | |
| 2 | 0645-675 | BRKT,PDM-4 STRK | 1 | $20.63 | |
| 3 | 1623-052 | NUT,U | 1 | $0.95 | |
| 4 | 0608-711 | BRKT,MTG-ECU | 1 | $16.49 | |
| 5 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 6 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 7 | 8470-525 | SCREW,MACH-TSPNH M5X.8X25 CL8.8 Z&Y | 1 | $2.47 | |
| 9 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 10 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 11 | 9611-362 | DECAL,EFI DIAGNOSTIC CODES-4 STROKE | 1 | $19.25 | |
| 12 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 |
