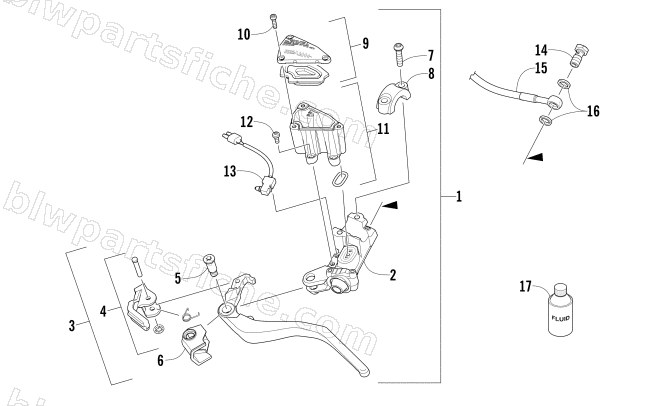

2016 Arctic Cat XF 8000 HIGH COUNTRY 141 SNO PRO EARLY BUILD — HYDRAULIC BRAKE CONTROL ASSEMBLY
2016 XF 8000 HIGH COUNTRY 141 SNO PRO EARLY BUILD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2602-477 | CYLINDER,MASTER-RACE | 1 | $322.95 | |
| 2 | 2602-479 | PISTON,SUB ASSY-W/RESERVIOR BODY | 1 | $322.95 | |
| 3 | 2602-427 | LEVER & PARK LEVER-SUB ASSY | 1 | $131.95 | |
| 4 | 2602-428 | PARK LEVER-SUB ASSY | 1 | $43.95 | |
| 5 | 2602-624 | PIN,PIVOT-M8 | 1 | $19.25 | |
| 6 | 2602-625 | BOOT,PIVOT PIN | 1 | $30.95 | |
| 7 | 1602-936 | CLAMP SCREWS-BRAKE | 1 | $19.25 | |
| 8 | 0502-869 | CLAMP(BLACK) | 1 | $53.95 | |
| 9 | 2602-429 | RESERVOIR COVER-SUB ASSY | 1 | $32.95 | |
| 10 | 2602-430 | KIT,SCREWS-RESERVOIR COVER | 1 | $5.37 | |
| 11 | 2602-433 | RESERVOIR-W/MOUNT SCREWS | 1 | $49.95 | |
| 13 | 2602-432 | SWITCH,STOPLIGHT | 1 | $88.95 | |
| 14 | 0423-413 | BOLT,BANJO FITTING-20mm | 1 | $4.13 | |
| 15 | 2602-424 | R/B 3602-099 | 1 | $104.95 | |
| 16 | 0423-178 | WASHER,CRUSH | 1 | $1.78 | |
| 17 | 5639-848 | DOT 4 BRAKE FLUID - 12 OZ | 1 | $13.73 |
