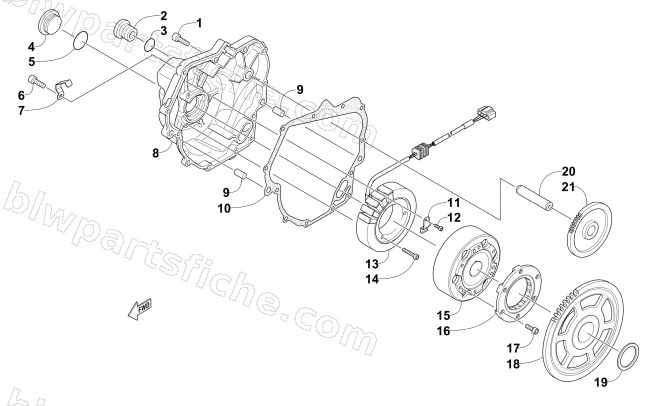

2016 Arctic Cat XF 7000 HIGH COUNTRY 141 — MAGNETO AND COVER ASSEMBLY
2016 XF 7000 HIGH COUNTRY 141
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-345 | SCREW,CAP-HSH | 1 | $12.35 | |
| 2 | 3020-346 | PLUG | 1 | $16.49 | |
| 3 | 3020-347 | O-RING | 1 | $5.37 | |
| 4 | 3020-348 | PLUG | 1 | $30.95 | |
| 5 | 3020-349 | O-RING | 1 | $5.37 | |
| 6 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 7 | 3020-350 | BRACKET,RETAINING | 1 | $12.35 | |
| 8 | 3020-351 | COVER,MAGNETO | 1 | $294.95 | |
| 9 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 11 | 3020-353 | BRACKET,RETAINING | 1 | $5.37 | |
| 12 | 3020-354 | SCREW,CAP-HSH | 1 | $3.85 | |
| 14 | 3020-356 | SCREW,CAP-HSH | 1 | $12.35 | |
| 15 | 3020-357 | ROTOR/FLYWHEEL | 1 | $838.95 | |
| 17 | 3020-359 | SCREW,CAP-HSH | 1 | $2.75 | |
| 18 | 3020-360 | GEAR,CLUTCH-STARTER | 1 | $184.95 | |
| 19 | 3020-361 | WASHER | 1 | $4.26 | |
| 20 | 3020-362 | SHAFT,IDLER GEAR | 1 | $8.21 |
