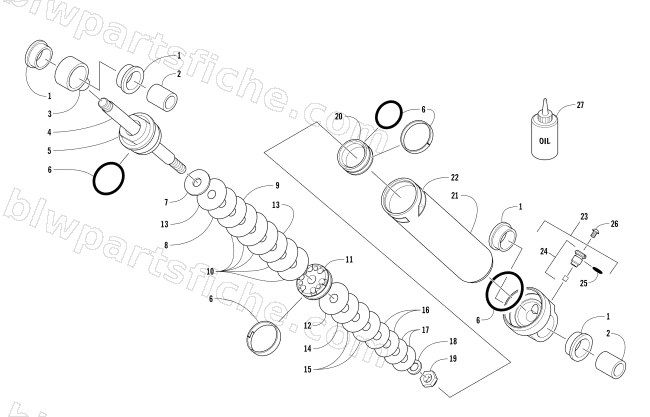

2016 Arctic Cat XF 7000 CROSSTREK — REAR SUSPENSION REAR ARM SHOCK ABSORBER
2016 XF 7000 CROSSTREK
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 0 | 2704-686 | SHOCK, REAR ARM-384.3 X 50.8 | 1 | $215.95 | |
| 1 | 3604-738 | BUSHING,REAR SHOCK | 1 | $17.87 | |
| 2 | 3604-737 | SLEEVE - 20.65 OD X 14.5 ID X 24.2 | 1 | $12.35 | |
| 3 | 3604-796 | EYELET,REAR ARM-FORGED | 1 | $89.95 | |
| 4 | 3604-810 | SHAFT,CHROME-12.66mm X 195.2mm | 1 | $114.95 | |
| 5 | 4604-127 | BEARING, ENDCAP - LONG - W/BLEED ASSY 2" | 1 | $54.95 | |
| 6 | 4604-121 | SEAL/BEARING - REBUILD KIT-37MM | 1 | $58.95 | |
| 7 | 3604-874 | WASHER,TOP OUT 40 OD X 2.5 (9.6) | 1 | $12.95 | |
| 8 | 3603-185 | VALVE,SHOCK-33.02 DIA X 0.25 (9.6 ID) | 1 | $5.95 | |
| 9 | 3604-873 | VALVE,SHOCK-36.2 OD X 0.25 X (9.6 ID) | 1 | $4.95 | |
| 10 | 3604-871 | VALVE, SHOCK-40.6 OD X 0 .25 X (9.6 ID) | 1 | $4.95 | |
| 11 | 3604-870 | PISTON 46.6 BORE - 1.4 ORFICE | 1 | $35.95 | |
| 12 | 3604-886 | VALVE, SHOCK-36.2 OD X 0.3 X (9.6 ID) | 1 | $4.95 | |
| 13 | 3603-125 | VALVE,SHOCK-25.4 OD X .25 (9.6 ID) | 1 | $6.95 | |
| 14 | 3603-146 | VALVE,SHOCK-27.94 OD X 0.3 (9.6 ID) | 1 | $6.95 | |
| 15 | 3603-126 | VALVE, SHOCK-25.4 OD X .3 (9.6 ID) | 1 | $5.95 | |
| 16 | 3603-117 | VALVE,SHOCK-22.86 OD X 0.4 (9.6 ID) | 1 | $2.95 | |
| 17 | 3603-107 | VALVE,SHOCK-20.32 OD X 0.4 (9.6 ID) | 1 | $5.95 | |
| 18 | 3604-775 | WASHER, BACKUP-15.8 OD X 2.4 X (9.6 ID) | 1 | $3.95 | |
| 19 | 3604-739 | NUT, HEX - 3/8"-24UNF | 1 | $4.95 | |
| 20 | 3604-876 | PISTON,FLOAT ASSY | 1 | $39.95 | |
| 21 | 3604-914 | BODY SHOCK-ALUM-46.6 BORE X 183.9MM | 1 | $168.95 | |
| 22 | 1621-728 | DECAL,WARNING-HIGH PRESSURE SHOCK | 1 | $3.44 | |
| 23 | 3604-894 | ENDCAP,BODY-W/PRESSURE VALVE ASSY | 1 | $118.95 | |
| 24 | 3604-751 | VALVE,PRESSURE-ASSY | 1 | $124.95 | |
| 26 | 3604-750 | SCREW.MACH-#8-32 X 5mm-SS | 1 | $2.47 | |
| 27 | 5639-530 | SEMI-SYN SHOCK OIL-1 QUART | 1 | $26.95 |
