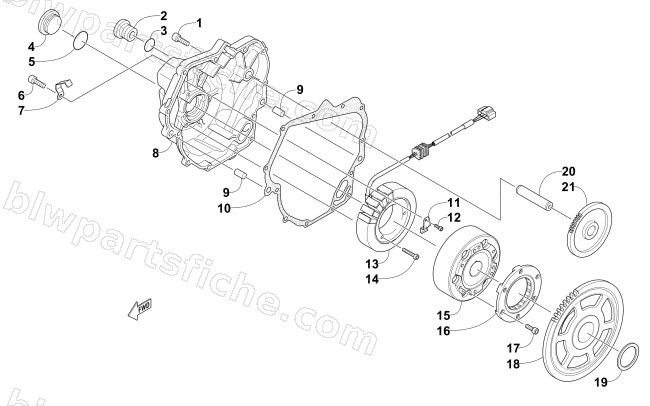

MAGNETO AND COVER ASSEMBLY
2016 XF 7000 CROSSTOUR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 3020-345 | SCREW,CAP-HSH | 1 | $12.35 | |
| 2 | 3020-346 | PLUG | 1 | $16.49 | |
| 3 | 3020-347 | O-RING | 1 | $5.37 | |
| 4 | 3020-348 | PLUG | 1 | $30.95 | |
| 5 | 3020-349 | O-RING | 1 | $5.37 | |
| 6 | 3020-314 | SCREW,CAP-HSH | 1 | $4.26 | |
| 7 | 3020-350 | BRACKET,RETAINING | 1 | $12.35 | |
| 8 | 3020-351 | COVER,MAGNETO | 1 | $294.95 | |
| 9 | 3020-293 | PIN, DOWEL | 1 | $6.75 | |
| 11 | 3020-353 | BRACKET,RETAINING | 1 | $5.37 | |
| 12 | 3020-354 | SCREW,CAP-HSH | 1 | $3.85 | |
| 14 | 3020-356 | SCREW,CAP-HSH | 1 | $12.35 | |
| 15 | 3020-357 | ROTOR/FLYWHEEL | 1 | $838.95 | |
| 17 | 3020-359 | SCREW,CAP-HSH | 1 | $2.75 | |
| 18 | 3020-360 | GEAR,CLUTCH-STARTER | 1 | $184.95 | |
| 19 | 3020-361 | WASHER | 1 | $4.26 | |
| 20 | 3020-362 | SHAFT,IDLER GEAR | 1 | $8.21 |
