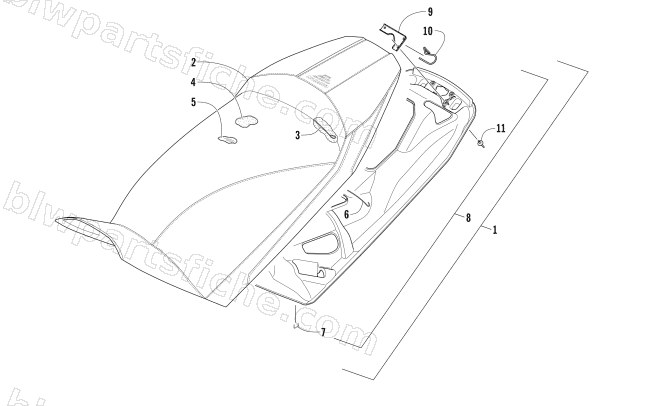

2016 Arctic Cat XF 7000 CROSS-TOUR — SEAT ASSEMBLY
2016 XF 7000 CROSS-TOUR
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 2 | 6706-060 | COVER,SEAT-ORN HEATED (220) | 1 | $382.95 | |
| 3 | 3606-369 | WIRE,SEAT-BENT | 1 | $4.26 | |
| 4 | 0717-220 | FOAM,SEAT-FRONT-TOUR-(.40R @ 5.0) | 1 | $132.95 | |
| 5 | 0609-913 | PAD,SEAT-HEATER | 1 | $201.95 | |
| 6 | 6606-461 | WIRE,SEAT-3.048 DIA X 279.4 mm | 1 | $1.92 | |
| 7 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 8 | 5706-856 | BASE,SEAT W/CLIP | 1 | $82.95 | |
| 9 | 6606-879 | BRKT,RETAINING-SPRING CLIP | 1 | $12.35 | |
| 10 | 1623-997 | CLIP,RETAINING SPRING-SEAT | 1 | $43.95 | |
| 11 | 8061-708 | RIVET, BLIND-LF SS66 BLACK | 1 | $0.95 |
