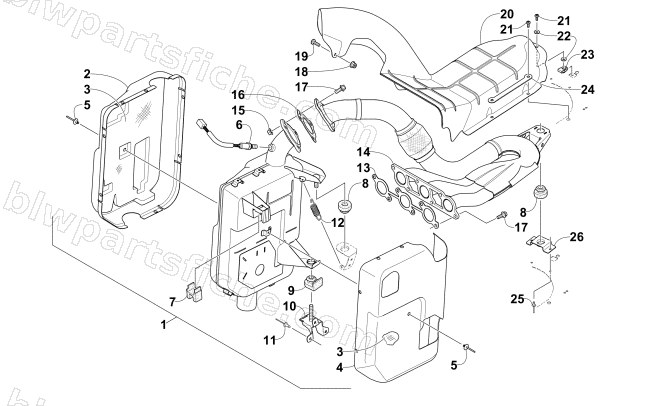

EXHAUST ASSEMBLY
2016 PANTERA 7000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 1712-964 | RESONATOR,EXHAUST-ASSY | 1 | $1,110.95 | |
| 2 | 2612-822 | SHIELD,HEAT-EXH RESONATOR-RH | 1 | $102.95 | |
| 3 | 2612-820 | PACKING,RESONATOR | 1 | $17.87 | |
| 4 | 2612-823 | SHIELD,HEAT-EXH RESONATOR-LH | 1 | $96.95 | |
| 5 | 1623-799 | RIVET,BLIND-LF SD61BSLF ZINC | 1 | $0.95 | |
| 6 | 0630-302 | R/B 0430-135 | 1 | $162.95 | |
| 7 | 2612-908 | GROMMET,RUBBER-UPPER | 1 | $8.21 | |
| 8 | 2612-186 | GROMMET,RUBBER-RESONATOR MOUNT | 1 | $12.35 | |
| 9 | 2612-912 | GROMMET,RESONATOR MOUNT | 1 | $5.65 | |
| 10 | 1712-790 | BRKT,MOUNTING-LOWER-RESONATOR-PTD BLK | 1 | $19.25 | |
| 11 | 8060-688 | RIVET,BLIND-DH SS66 ZINC | 1 | $0.40 | |
| 12 | 0612-668 | SPRING,EXTENSION | 1 | $4.68 | |
| 13 | 3020-136 | GASKET,EXHAUST MANIFOLD | 1 | $29.95 | |
| 14 | 1712-987 | MANIFOLD,EXHAUST-WELD'T | 1 | $845.95 | |
| 15 | 1623-912 | NUT,HEX FLG-TOP LOCK M8X1.25 CL8 HI TEMP | 1 | $1.64 | |
| 16 | 2612-663 | GASKET, EXHAUST | 1 | $26.95 | |
| 17 | 1623-918 | SCREW,CAP-HFH M8X1.25X20 CL8.8 HI TEMP | 1 | $1.64 | |
| 18 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 19 | 8476-625 | SCREW,MACH-TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 20 | 2612-880 | SHIELD,HEAT-MANIFOLD-COLLECTOR-UPPER | 1 | $126.95 | |
| 21 | 8470-516 | SCREW,MACH-TSPNH M5X.8X16 CL8.8 Z&Y | 1 | $0.26 | |
| 22 | 8050-217 | WASHER,FLAT- 1/4 X .625 X .065 Z&Y | 1 | $0.12 | |
| 23 | 1623-637 | CLIP,U-NUT (M5) | 1 | $2.47 | |
| 24 | 2612-969 | PLATE,MTG-HEAT SHIELD | 1 | $3.16 | |
| 25 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 26 | 2612-963 | BRKT,MTG-EXH MANIFOLD-TUNNEL | 1 | $8.21 |
