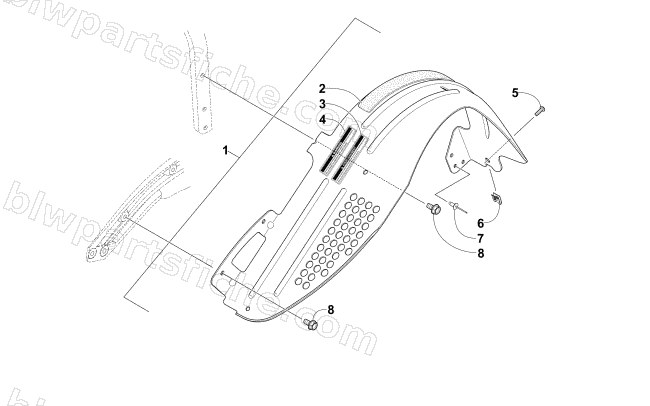

BELT GUARD ASSEMBLY
2016 PANTERA 7000
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 2707-277 | GUARD,CLUTCH-7000 W/WARNING DECALS | 1 | $106.95 | |
| 2 | 0617-733 | PAD,RUBBER-25 X 160 X 1.6 | 1 | $2.06 | |
| 3 | 9611-691 | DECAL,WARNING-GUARD-FRENCH (9611-690) | 1 | $3.16 | |
| 4 | 9611-690 | DECAL,WARNING-GUARD-ENGLISH | 1 | $3.16 | |
| 5 | 0623-797 | SCREW,SELF TAP-TSTH 10-12X1/2 WO/GP | 1 | $0.45 | |
| 6 | 1623-052 | NUT,U | 1 | $0.95 | |
| 7 | 8060-686 | RIVET,BLIND-DH SS64 ZINC | 1 | $0.40 | |
| 8 | 0623-966 | SCREW,SELF TAP-HWH M6 X 12 Z (TRI LOB) | 1 | $1.09 |
