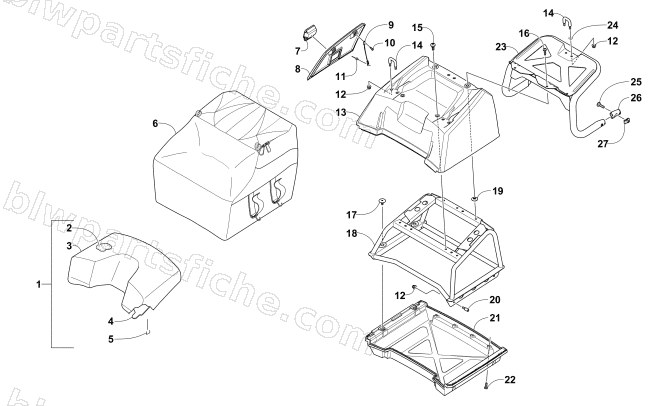

2016 Arctic Cat PANTERA 7000 XT LTD — THIRD SEAT AND STORAGE ASSEMBLIES
2016 PANTERA 7000 XT LTD
Diagrams are watermarked to identify this site as the source of the reproduction and discourage scraping. The artwork is not ours — see Legal.
Prices are out of date. They are the last prices on record (approx. 2019) and are shown for reference only — nothing here is for sale. The archive data itself — part numbers, diagrams and supersessions — is still accurate.
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 4 | 7606-035 | BASE,SEAT | 1 | $33.95 | |
| 5 | 0624-528 | STAPLE,5/16L X 1/2W-20GA SS/5000 PAK-SEA | 1 | $161.95 | |
| 7 | 1423-035 | LATCH,SLIDE | 1 | $16.49 | |
| 9 | 6606-616 | CABLE,ACCESS DOOR | 1 | $13.73 | |
| 10 | 1623-978 | SCREW,SELF TAP-TSPH-ECOSYN-M4X10 | 1 | $1.31 | |
| 11 | 8060-484 | RIVET, BLIND-DH SS53 ZINC | 1 | $0.40 | |
| 12 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 15 | 0423-355 | SCREW, SHOULDER-M6-1.0 X 18-BLK | 1 | $0.95 | |
| 16 | 2623-063 | SCREW,MACH-TSPNH-M6X1X20-MPT-BLK W/2353 | 1 | $1.64 | |
| 17 | 1623-775 | SCREW,SHOULDER TSTRH M6X1.0X25 Z&Y | 1 | $1.78 | |
| 19 | 2623-099 | SPACER,SEAT | 1 | $16.49 | |
| 22 | 1623-933 | SCREW,PLASTITE-TXSPNH 10-14X3/4 Z&B | 1 | $0.26 | |
| 24 | 8050-212 | WASHER,FLAT- 1/4 X .500 X .063 Z&Y | 1 | $0.68 | |
| 25 | 8468-626 | SCREW,MACH-TSPNH M6X1.0X25 CL8.8 W/2353 | 1 | $1.09 | |
| 26 | 1607-002 | INSERT,UPPER SPAR | 1 | $1.92 | |
| 27 | 0423-577 | CLIP,U-NUT M6 | 1 | $0.40 |
