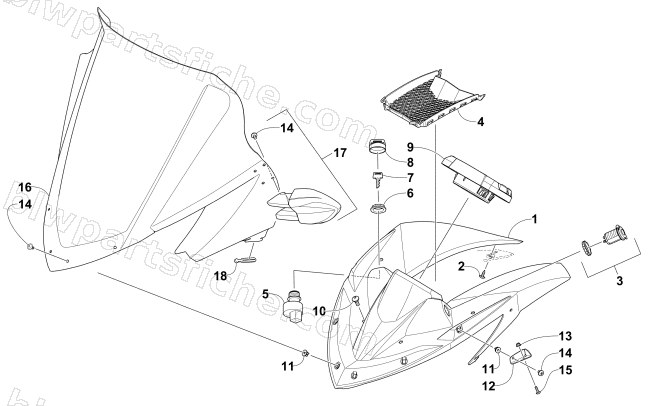

2016 Arctic Cat PANTERA 7000 LTD — WINDSHIELD AND INSTRUMENTS ASSEMBLIES
2016 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 6606-628 | COWL,HEADLIGHT-Z3-BLK | 1 | $185.95 | |
| 2 | 1623-129 | R/B 2623-166 | 1 | $0.35 | |
| 3 | 0641-897 | OUTLET, ACCESSORY - 12V DC | 1 | $23.39 | |
| 4 | 6606-556 | VENT,POD | 1 | $33.95 | |
| 5 | 0609-911 | SWITCH,IGNITION-W/KEY | 1 | $66.95 | |
| 6 | 0430-050 | NUT,FLANGE-KEYSWITCH | 1 | $1.92 | |
| 7 | 0430-042 | KEY,IGNITION SERIES-Y (LH BLANK) | 1 | $5.92 | |
| 7 | 0430-043 | KEY,IGNITION SERIES-Z (RH BLANK) | 1 | $11.95 | |
| 8 | 0430-054 | COVER,KEY | 1 | $15.11 | |
| 9 | 0720-029 | R/B 0720-036 | 1 | $709.95 | |
| 10 | 2623-042 | SCREW,SHOULDER-TSBH-M6-1.0 X 18 | 1 | $1.78 | |
| 11 | 1623-025 | GROMMET,SCREW-PLASTIC | 1 | $0.95 | |
| 12 | 5706-668 | BRKT,MOUNTING-WINDSHIELD-RH-PTD BLK | 1 | $12.35 | |
| 12 | 5706-669 | BRKT,MOUNTING-WINDSHIELD-LH-PTD BLK | 1 | $12.35 | |
| 13 | 8427-502 | NUT,HEX FLG-NYL LOCK M5X0.8 CL8 Z&Y | 1 | $0.95 | |
| 15 | 8477-516 | SCREW,MACH-TSTRH M5X0.8X16 Z&BLK | 1 | $0.68 | |
| 16 | 6606-587 | WINDSHIELD,HIGH-TOURING | 1 | $266.95 | |
| 17 | 6639-769 | KIT,MIRROR(SINGLE)'15 PTA-BLK | 1 | $46.95 | |
| 17 | 6639-770 | KIT,MIRROR(PAIR)'15 PTA-BLK | 1 | $92.95 | |
| 18 | 2606-853 | RETAINER,WINDSHIELD | 1 | $4.07 |
