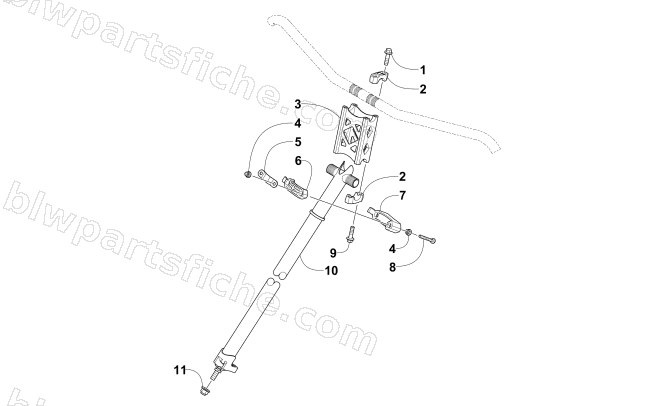

STEERING POST ASSEMBLY
2016 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 8476-830 | SCREW,MACH-TSTRH M8X1.25X30 Z&Y | 1 | $9.59 | |
| 2 | 1605-118 | CAP,STEERING | 1 | $5.65 | |
| 3 | 1605-034 | RISER,6.5 HANDLEBAR-MACH | 1 | $113.95 | |
| 4 | 8427-602 | NUT,HEX FLG-NYL LOCK M6X1.0 CL8 Z&Y | 1 | $0.12 | |
| 5 | 0605-998 | PLATE,RETAINING-STEERING POST | 1 | $2.61 | |
| 6 | 1605-043 | BLOCK,MTG-STEERING POST-UPPER | 1 | $3.57 | |
| 7 | 1605-156 | BLOCK,MTG-STEERING POST-LOWER | 1 | $3.99 | |
| 8 | 2623-070 | SCREW,MACH-TSPNH-M6X1.0X70 CL 8.8 Z&Y | 1 | $2.47 | |
| 9 | 8408-830 | SCREW,CAP-HFH M8X1.25X30 CL8.8 Z&Y | 1 | $0.95 | |
| 10 | 1705-309 | R/B 1705-522 | 1 | $122.95 | |
| 11 | 2623-076 | R/B 2623-202 | 1 | $1.39 |
