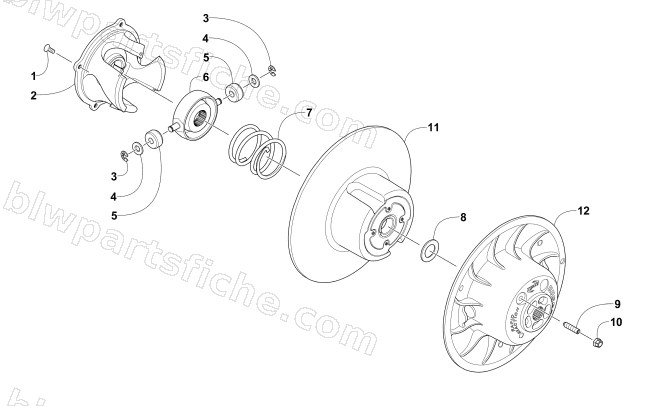

DRIVEN CLUTCH
2016 PANTERA 7000 LTD
| # | Part No. | Description | Qty | Price | |
|---|---|---|---|---|---|
| 1 | 0648-875 | SCREW,MACH-TXSFH-1/4-28X.625 | 1 | $6.47 | |
| 3 | 0648-701 | RING,RETAINING-.375(TI) (R/B 0823-440) | 1 | $6.95 | |
| 4 | 0648-700 | WASHER,THRUST(TI) | 1 | $1.37 | |
| 5 | 0648-842 | ROLLER,CLUTCH 1.135 X .550 | 1 | $19.25 | |
| 8 | 0648-850 | SHIM-23.114 ID X 38.1 OD X 2.29-STEEL | 1 | $4.68 | |
| 8 | 0648-849 | SHIM-23.114 ID X 38.1 OD X 0.76-STEEL | 1 | $2.06 | |
| 8 | 0648-852 | SHIM-23.114 ID X 38.1 OD X 0.38-STEEL | 1 | $5.95 | |
| 9 | 0648-845 | SCREW,SET HEX SKT 5/16 - 24X1.25 | 1 | $13.73 | |
| 10 | 0648-846 | NUT,LOCK HEX 5/16-24 FLEXLOC | 1 | $15.11 | |
| 11 | 0748-776 | SHEAVE,MOVEABLE-ASSY | 1 | $220.95 | |
| 12 | 0748-030 | SHEAVE,STATIONARY-STD BOSS-273-ASSY | 1 | $274.95 |
